Dimensions
Semi-Electric (CKJC-Y Series)
Universal Wheel (CKJC-EW Series)
Hydraulic Steering (CKJC-EH Series)
Heavy-Duty Hydraulic Drive (CKJC-HD Series)
Drive
Electric Lift / Manual Travel
Electric Drive & Omni-Directional
Electric Drive / Hydraulic Steering
Full Hydraulic Drive & Steering
Steering Type
Manual
360° Universal Wheel Rotation
Hydraulic 2-Wheel Steering
Hydraulic 2-Wheel Steering
Key Advantage
Lightweight & Compact
Minimum Operating Width (800 mm)
Proportional Control & Full-Height Travel
Maximum Height up to 16 m
Tires
Solid Non-Marking
Solid Non-Marking
Solid Non-Marking
Solid Non-Marking
Key Safety Feature
Integrated Emergency Descent
Audio/Visual Alarms, Fault Display
Tilt Alarm, Motion Beeper, Strobe
Fuel Line Explosion Prevention System
Maximum safe working height (mm)
5,000-6,800 Mm
5,000-6,800 Mm
5,000-6,800 Mm
8,000-15,800 Mm
Machine Weight
430-580 kg
570-690 kg
710-850 kg
1,450-3,380 kg
Maximum platform height (mm)
3,000-4,800 mm
3,000-4,800 mm
3,000-4,800 mm
5,800-13,800 mm
Application Scenarios CKJC-Y Series
Designed for industrial maintenance, equipment installation, and material-handling applications requiring lightweight and compact solutions for elevated access.
How WIZPLUS CKJC-Y Series Works
Combining manual positioning with battery-powered vertical actuation, the platform uses a cross-cylinder scissor mechanism for stable lifting and high rigidity. Folding geometry reduces transport height, while extendable platforms and foldable rails save storage space. An emergency-descent circuit provides controlled lowering during power loss or hydraulic faults for safety.
Why This Solution Fits
Manual positioning paired with electric lifting keeps the unit compact and budget-friendly, providing reliable elevated access for routine maintenance without complex drive machinery.
Application Scenarios CKJC-EW Series
Designed for sound-sensitive environments such as shopping malls, office complexes, and indoor maintenance zones requiring compact access and zero-turn maneuverability.
How WIZPLUS CKJC-EW Series Works
Featuring powered drive wheels paired with precision casters, this model enables 360° on-the-spot rotation and true omni-directional travel. With a minimum operating width of just 800 mm, the unit navigates narrow aisles, doorways, and service corridors with ease. Low-noise electric propulsion ensures smooth, efficient movement without workplace disruption.
Why This Solution Fits
The 360° rotation and ultra-narrow 800 mm chassis allow operators to position the lift effortlessly in extremely cramped indoor quarters where traditional lifts cannot turn.
Key Components
Rear tire
Charging Port
Integrated smart charger features a built-in cooling fan and LED status indicators for fast, safe, and highly efficient daily battery recharging.

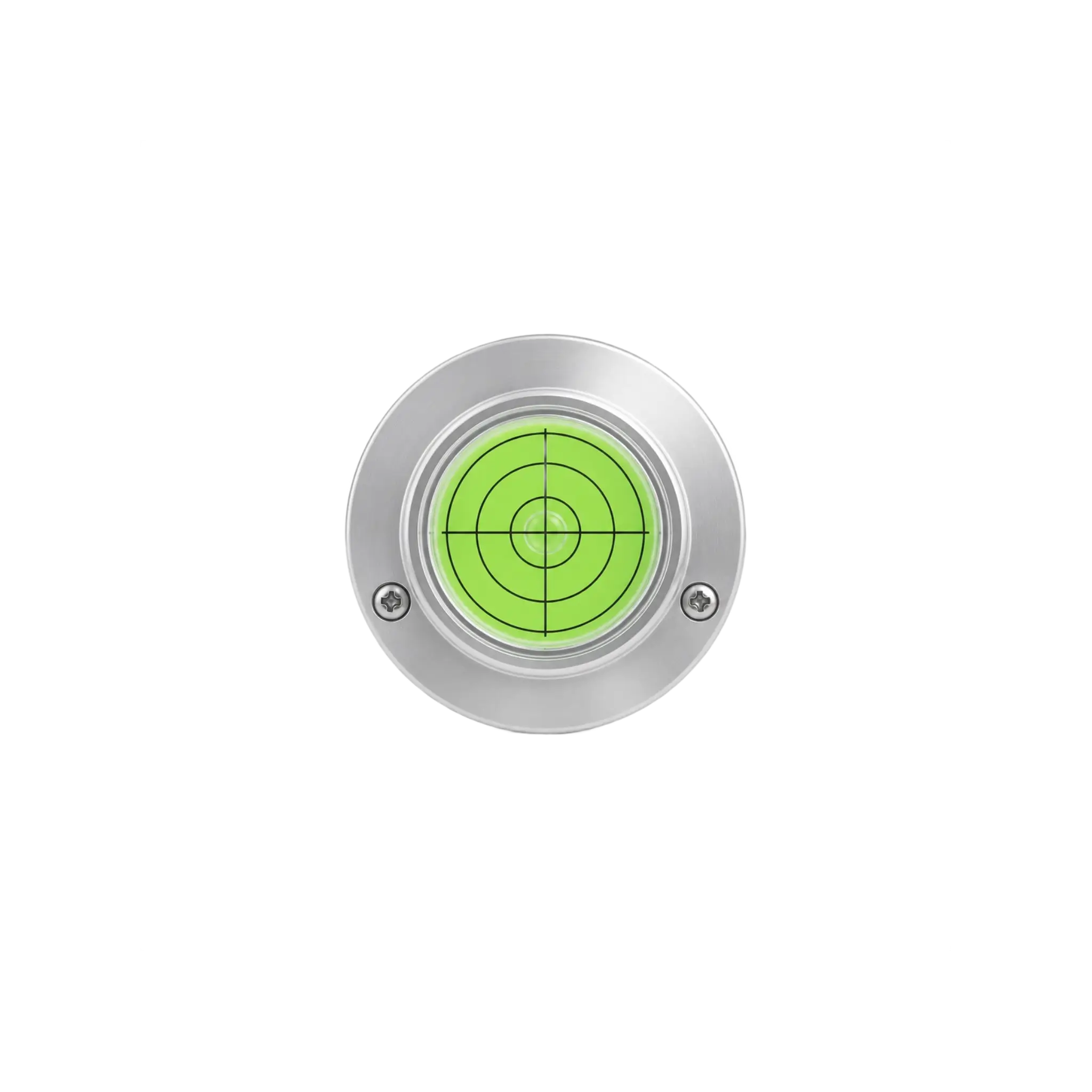

Stablizer
Integrated bubble stabilizer provides clear level indication for quick setup, precise machine alignment, improved stability, and safer operation on uneven surfaces.

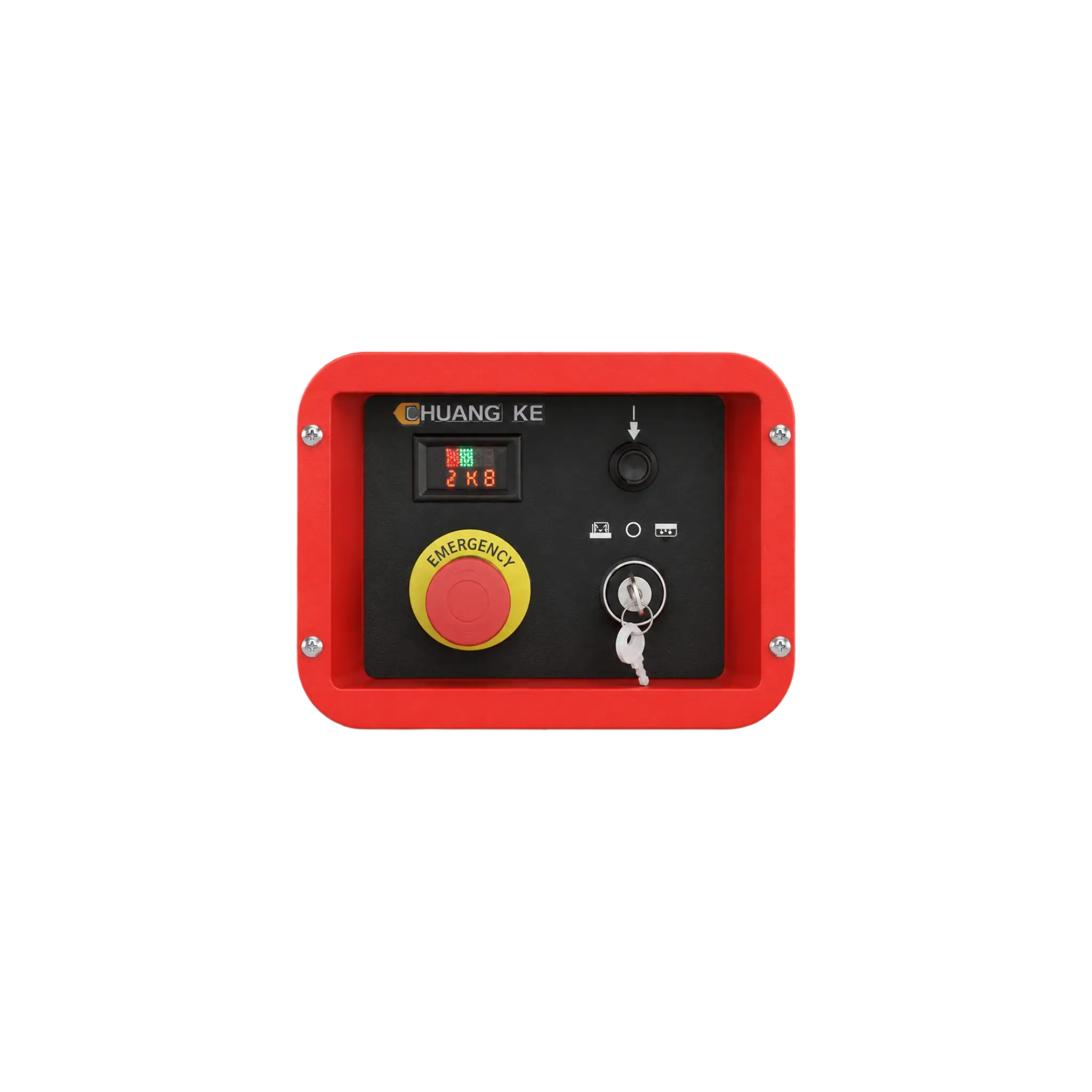

Lower Control Panel
Integrated lower control panel combines emergency stop, key switch, and status display for convenient and efficient machine operation at ground level.
