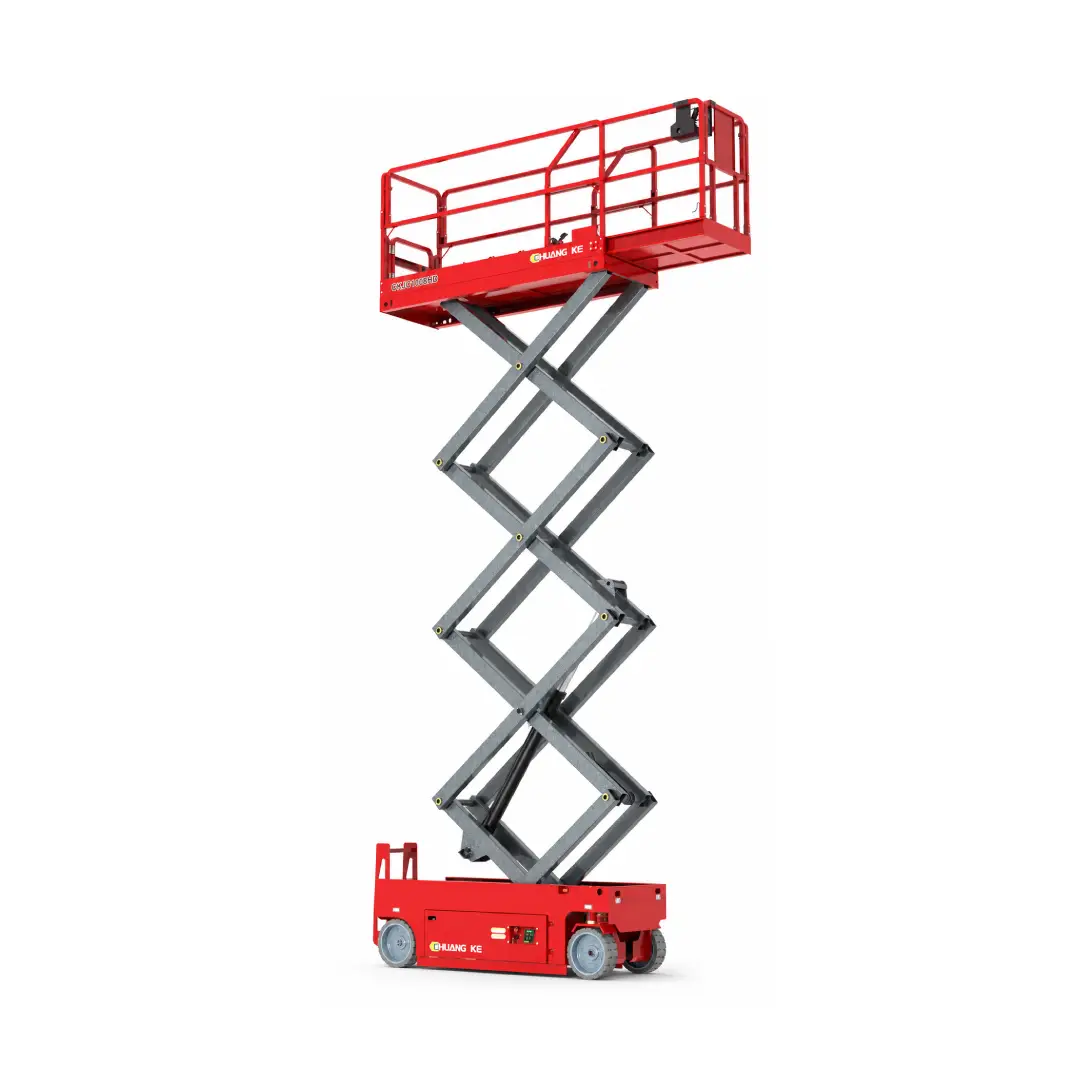

Scissor Lift Platform
Model:
CKJC-HD
Series
The CKJC Series Hydraulic Drive Electric Scissor Lift delivers 8–16 m working heights for demanding construction and maintenance applications. Featuring a 320 kg capacity, 900 mm extension deck, full-height drive capability, and zero-emission electric hydraulic system, it provides reliable performance, lower maintenance, and enhanced safety for both indoor and outdoor jobsites.
STANDARDS & CERTIFICATIONS
CE
ANSI
ISO 9001 QMS
SPECIFICATIONS
Construction
Technical Data
Electric Scissor Lift Platform (Hydraulic Drive Hydraulic Steering) Technical Data
Compare working heights, load capacities, platform dimensions, drive systems, and key technical specifications across the WIZPLUS Small Electric Scissor Lift Platform series to find the model that best fits your application.
Dimensions
CKJC0806HDA
CKJC0806HD
CKJC1008HDA
CKJC1614HD
Minimum ground clearance (mm)
100
100
100
100
Wheelbase (mm)
1850
1850
1850
2240
Machine weight (kg)
1450
2000
2025
3380
Safe working load (kg)
230
320
230
320
Extension platform load (kg)
113
113
113
113
Tire (mm)
φ381×127
φ381×127
φ381×127
φ381×127
Feature 01

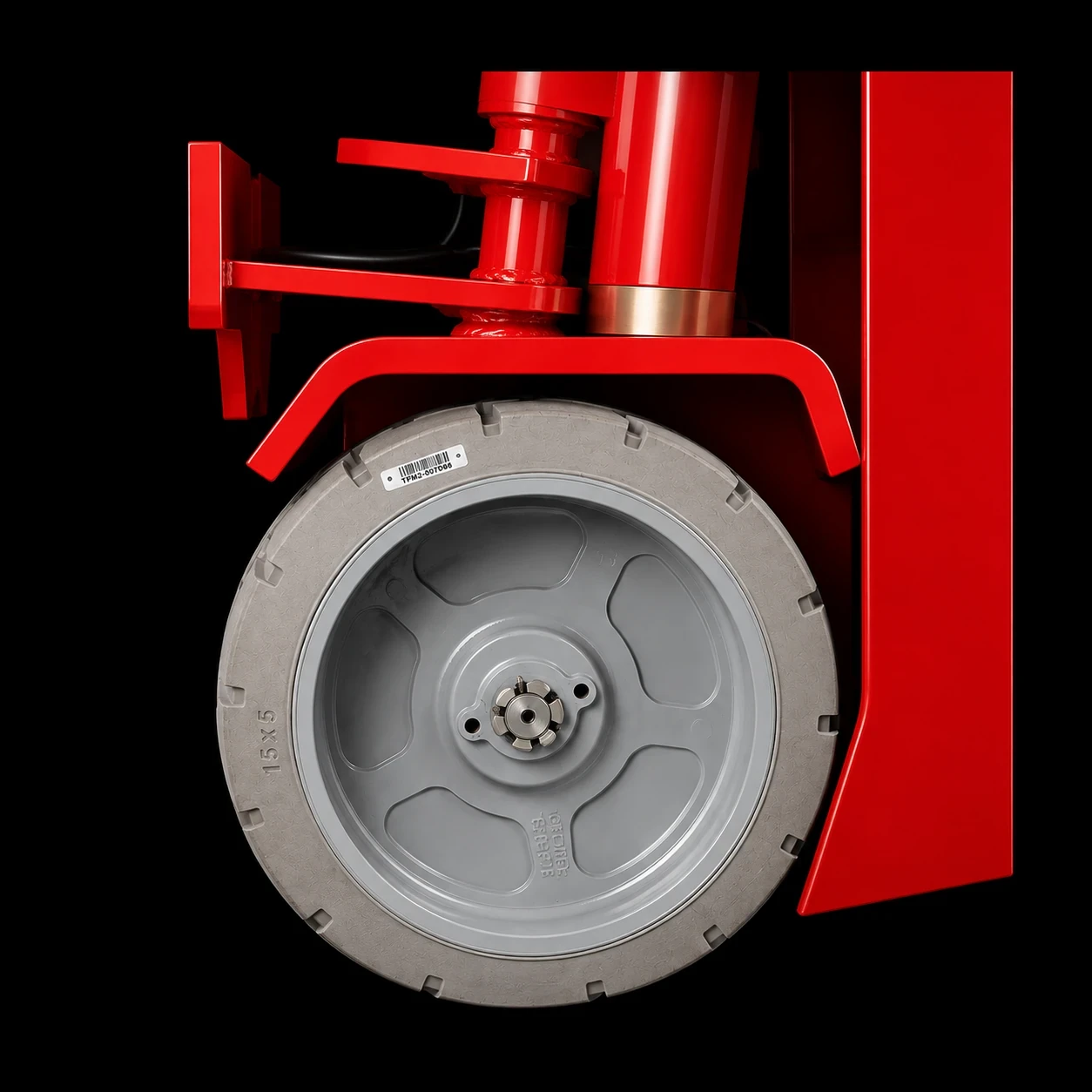

Heavy-Duty Wheel for Stable Steering
Durable wheel assembly supports smooth movement, precise steering, and stable positioning.
Feature 02
Secure Elevated Working Area
The spacious platform is equipped with strong safety guardrails, providing operators with a stable and protected working environment at height.
Feature 03
Convenient Start and Power Controls
Clearly positioned switches provide fast startup and reliable everyday machine operation.
Feature 04
Emergency Controls for Safer Operation
Quick-access emergency stop and intuitive controls improve operator safety and confidence.
CAPABILITIES
Global Compliance & Certifications
Manufactured under an ISO 9001 quality management system, WIZPLUS lifting equipment is designed to meet international standards, including CE and ANSI requirements, supporting global projects with reliable quality and regulatory compliance.
Smart Telematics & Fleet Management
Optional IoT and telematics integration enables remote equipment monitoring, location tracking, battery diagnostics, and maintenance management, helping fleet operators improve uptime and reduce operating costs.
Quality Traceability & Product Testing
Every machine is manufactured under standardized quality control procedures, with comprehensive inspections, load testing, and performance verification to ensure consistent quality and reliable operation.
Global Supply Chain & Parts Support
A reliable supply chain and standardized components help ensure efficient production, dependable delivery, and responsive spare parts support for customers in international markets.
Key Features
Built-in safety, precise control, and effortless maneuvering — engineered to keep aerial access simple, stable, and reliable at every height.
1
High Productivity & Heavy-Duty Performance
With a 320 kg safe working load, a 900 mm extension deck, and full-height drive capability, the platform supports two operators with tools and materials while reducing repositioning time and improving productivity on demanding jobsites.
2
Powerful Hydraulic Drive System
A 24V/3.0 kW electric hydraulic drive delivers stable lifting performance and reliable traction for working heights up to 16 m. Solid non-marking tires provide smooth operation on both outdoor worksites and finished indoor floors.
3
Comprehensive Safety Protection
Equipped with a self-locking platform gate, automatic braking system, tilt alarm, motion buzzer, emergency descent system, and hydraulic hose burst protection to enhance operator safety and equipment reliability.
4
Low Maintenance & Easy Operation
Intelligent fault diagnostics simplify troubleshooting and reduce downtime, while fully proportional joystick controls provide smooth, precise operation. An optional lithium-ion battery offers longer runtime with virtually maintenance-free performance.
Manufacturing Capability
High-Power Laser Cutting for Structural Precision
12,000W laser cutting machines and 4,000W automatic laser pipe cutters give scissor arms and chassis frames the tight, repeatable tolerances heavier-gauge steel needs for long-term structural stability.
CNC Forming & Robotic Welding for Consistent Builds
300-ton CNC bending machines and a welding robot assembly line reduce the joint-to-joint variation that comes from manual welding across large production runs.
A Facility Built for Heavy Structural Components
A 40,000㎡ facility with 50-ton and 16-ton cranes and high-ceiling workshops handles the oversized components heavier-duty scissor lift platforms require.
Integrated Finishing & Testing, Not Outsourced
An in-house painting line and dedicated testing equipment mean surface treatment and quality testing happen alongside fabrication — not at a third-party shop.
ELECTRIC SCISSOR LIFT
Your Trusted Scissor Lift Manufacturing Partner.
Applications
Small Electric Scissor Lift Platform — Application Scenarios
Engineered for Reliable Elevated Access
Compact enough for narrow aisles, stable enough for repetitive lifting — built for the everyday picking and light maintenance tasks warehouses and retail spaces actually run into.
before order
Six Key Considerations Before Ordering a electric scissor lift
Understand the key considerations before ordering an order picker, including application requirements, working height, load capacity, customization options, safety compliance, and delivery planning.
1
Working Height vs. Platform Height
Confirm whether your requirement is working height (platform height plus average reach, typically +1.5–2m) or platform height itself — quoting the wrong figure is one of the most common sizing mistakes, and it can leave a crew short of the access they actually need.
2
Platform Load Capacity for the Actual Task
Size to the combined weight of operator, tools, and materials carried up together — not just body weight. A 300kg rating looks generous until a toolbox and spare parts are added to the load.
3
Chassis Width for Aisle & Elevator Access
Measure your narrowest aisle and elevator opening before selecting a model. Compact chassis widths (750–800mm on smaller units) matter far more indoors than platform height does, since a lift that can't fit through the space is unusable regardless of capacity.
4
Floor Type & Ground Bearing Pressure
Finished warehouse flooring, unfinished construction slab, and outdoor pavement all carry different load-bearing tolerances. Confirm the unit's ground bearing pressure and grade-ability rating against your actual floor conditions, not just its stated indoor/outdoor classification.
5
Battery Type & Charging Cycle
Match battery type (standard vs. maintenance-free vs. lithium-ion) and charge time to your operating schedule. A unit needing an 8-hour charge doesn't fit a facility running two shifts without a second battery or a faster-charging option.
6
Certification & Safety Documentation for Your Market
Confirm which certifications (CE, ISO, or local equivalents) apply to your destination market before ordering — this is a customs and compliance requirement, not just a quality signal, and it varies by region rather than being universal.
