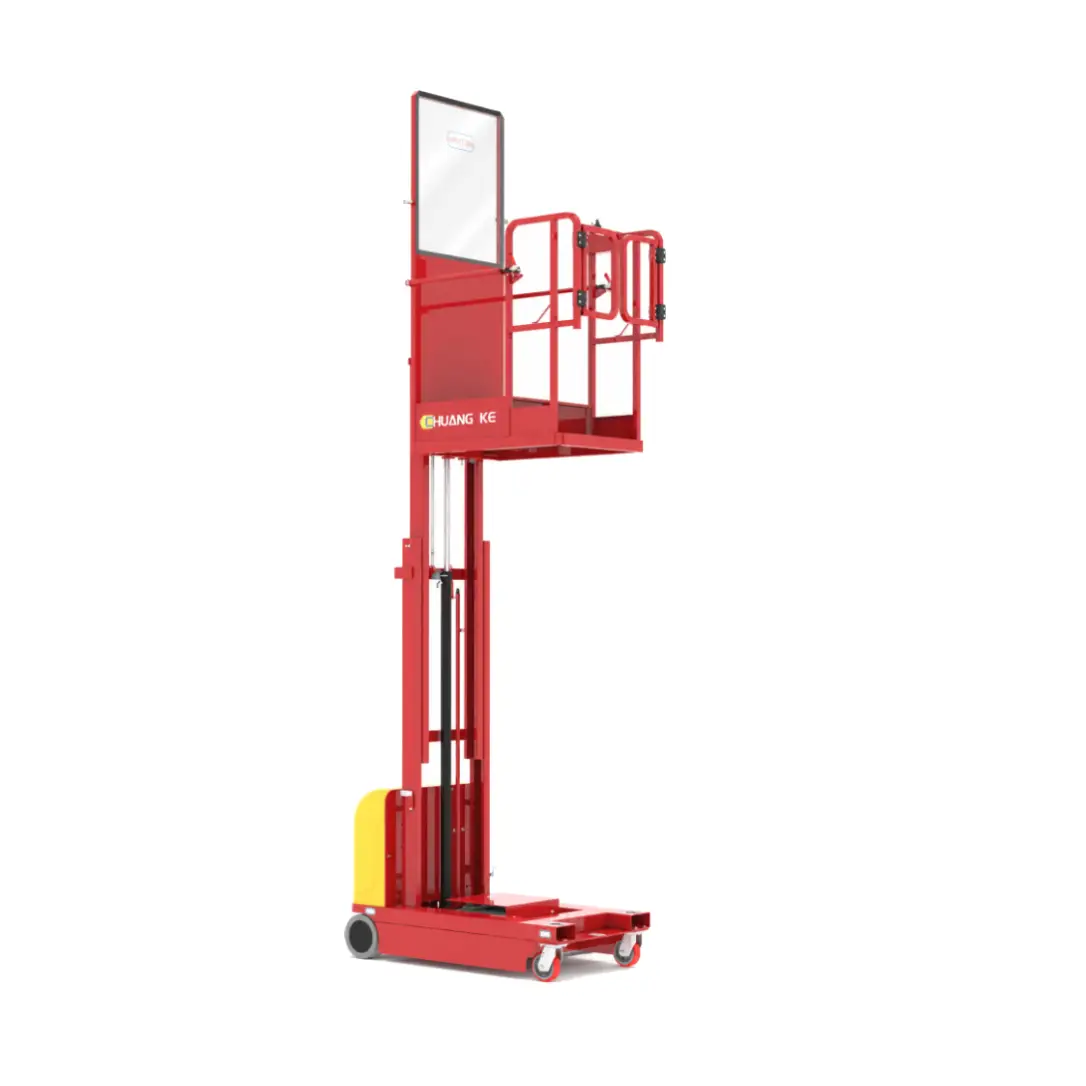

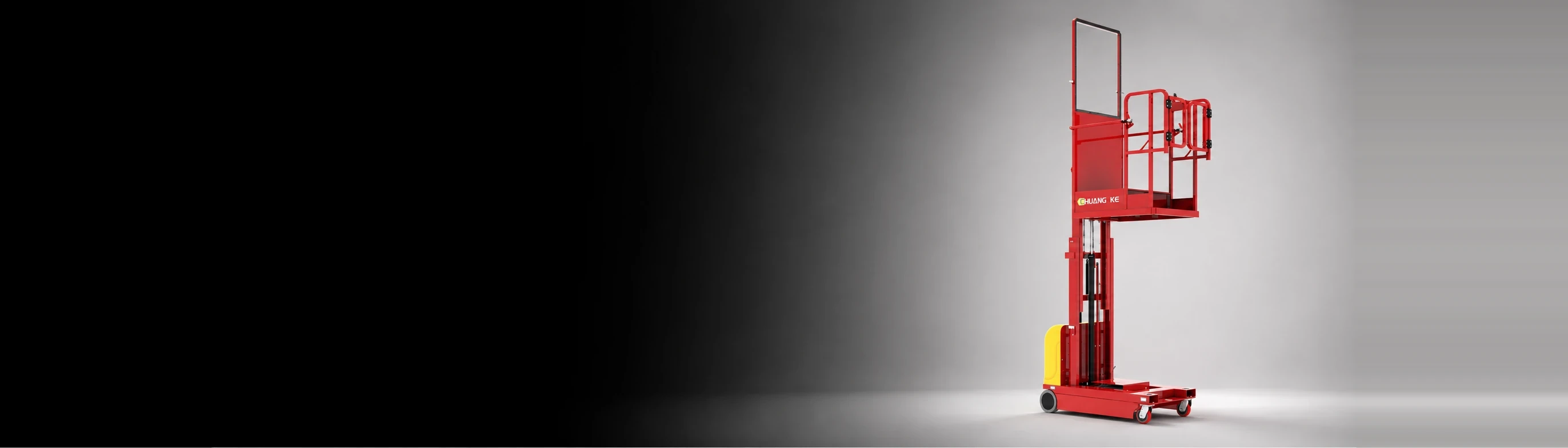

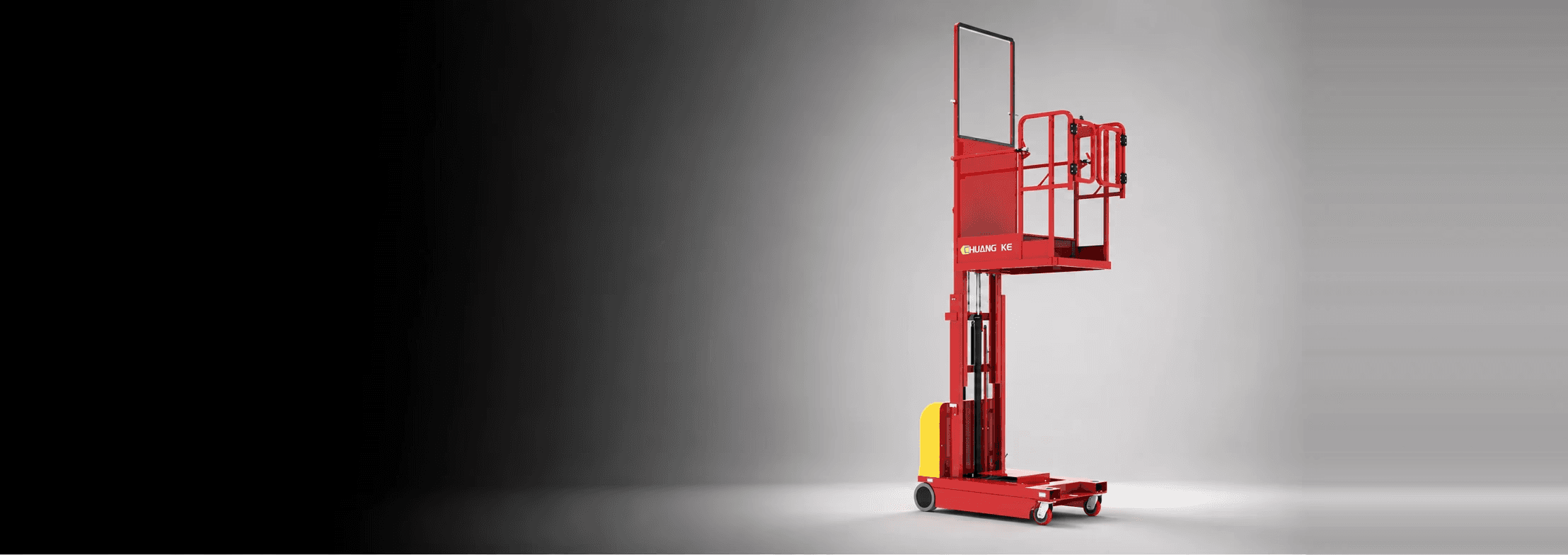

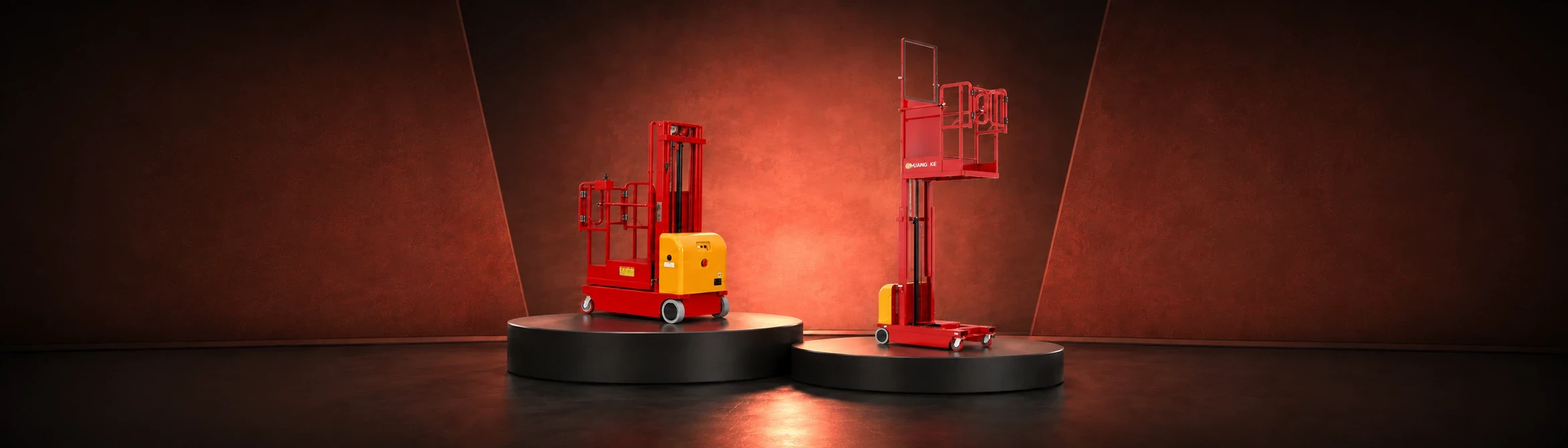

Self-propelled Full Electric Order Picker
Model:
OP
Series
The OP Series is WIZPLUS's self-propelled, fully electric order picker for one-person elevated access in warehouses and distribution centers — compact, stable, and built for order picking, replenishment, and maintenance, with emergency lowering and interlock protection standard.
STANDARDS & CERTIFICATIONS
CE
ANSI
ISO 9001 QMS
SPECIFICATIONS
Construction
Technical Data
WIZPLUS Self-propelled Full Electric Order Picker Series Comparison
WIZPLUS Aerial Work Platform series provides flexible lifting solutions for different working environments. Review key specifications including height range, platform capacity, dimensions, and performance features to select the ideal equipment for your elevated access needs.
Dimensions
OP30
OP35
OP40
OP45
Wheelbase (mm)
1240
1240
1400
1400
Wheelbase front wheel (mm)
670
670
670
670
Wheelbase rear wheel (mm)
640
640
640
640
Machine weight (kg)
525
570
675
710
Safe Working Load (kg)
300
300
300
300
Electric Drive Tire (mm)
φ230*80
φ230*80
φ230*80
φ230*80
Universal wheel (mm)
φ150*50
φ150*50
φ150*50
φ150*50
Feature 01
Mast Chain Drive System
Strong chain drive ensures stable and smooth lifting.
Feature 02

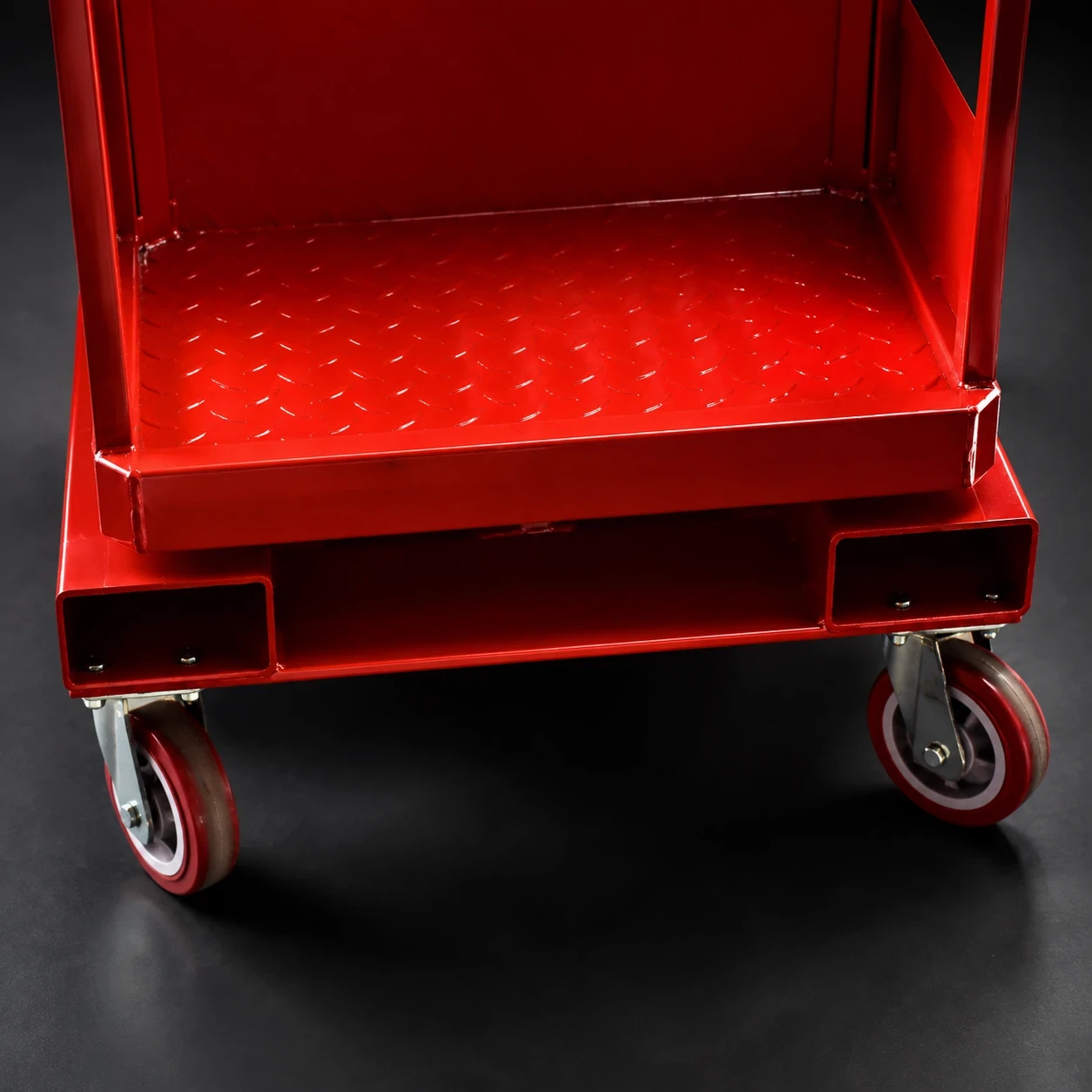

Zero-Turning Radius Wheels
Enables precise maneuverability in confined spaces, allowing smooth operation around obstacles and narrow aisles.
Feature 03

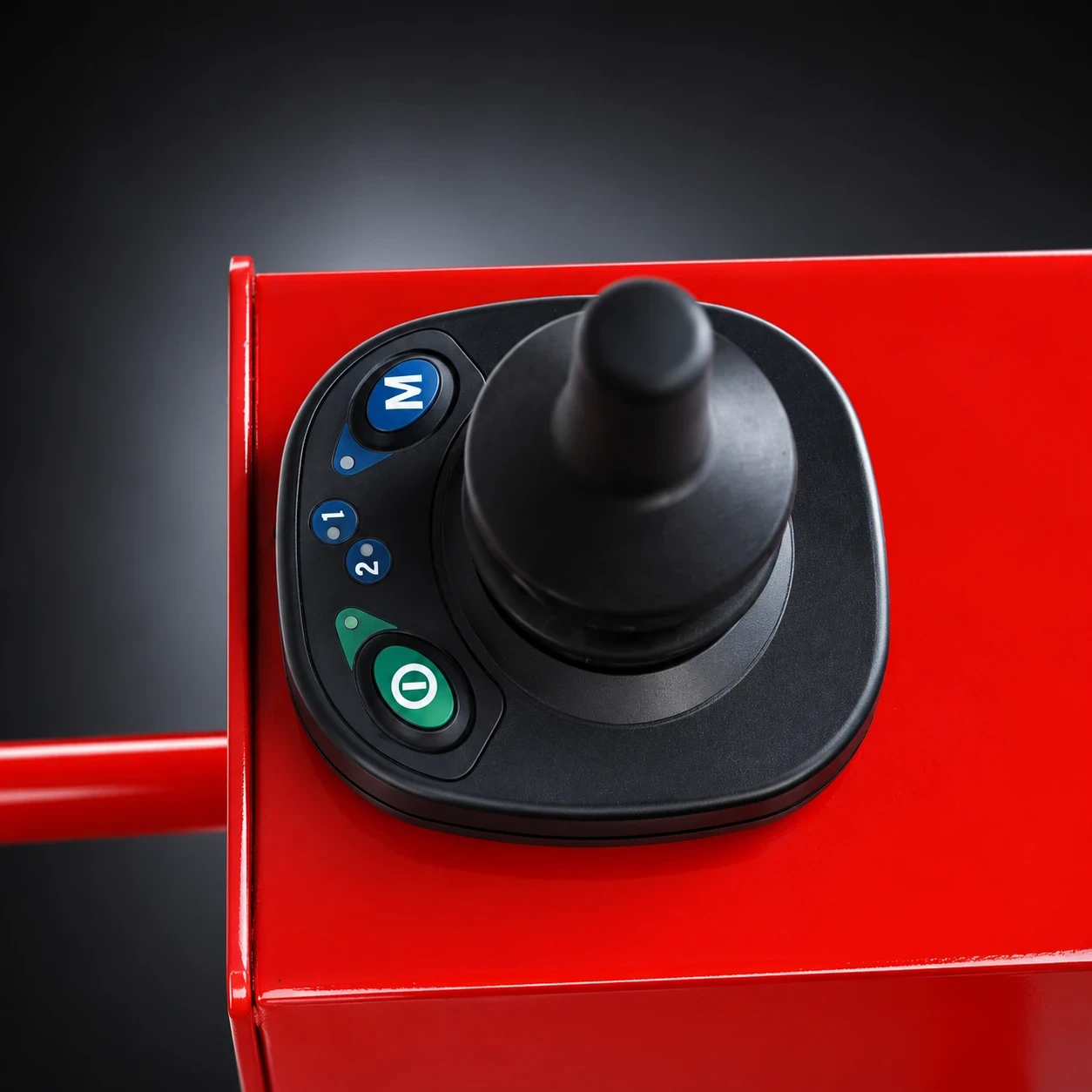

Upper Control Panel
Easy controls for precise operation and status monitoring.
Feature 04

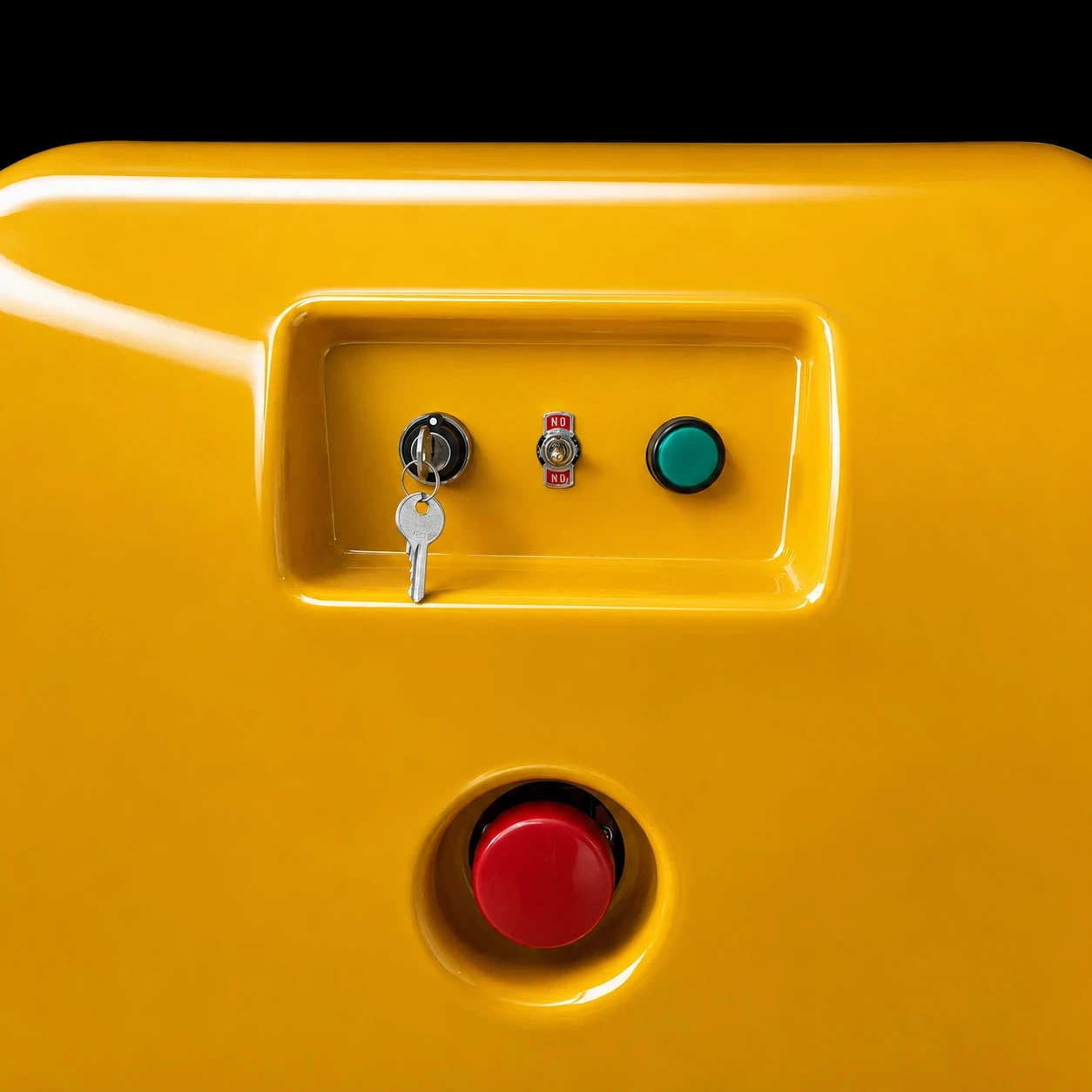

Lower Platform Control Panel
Provides convenient ground-level controls for equipment operation, maintenance, and emergency assistance.
CAPABILITIES
Trusted by Global Industry Leaders
WIZPLUS lifting solutions are trusted by global customers for reliable performance, advanced technology, and exceptional quality across various industrial applications.
Innovative Lifting Technology Solutions
We develop smart lifting equipment with innovative technology, helping businesses improve operational efficiency, workplace safety, and productivity in demanding environments.
Flexible OEM Customization Services
WIZPLUS provides customized lifting solutions with flexible designs, supporting different applications, specifications, and unique customer requirements globally.
Worldwide Customer Support Network
We provide professional support, technical guidance, and efficient service to help customers maximize equipment performance and long-term value.
Key Features
Key Features of Self-Propelled order picker
1
Zero-Turning-Radius Dual-Wheel Drive
Dual front-wheel drive with zero turning radius delivers tight, precise maneuvering in narrow aisles and confined warehouse spaces.
2
300kg Safe Working Load
Supports a 300kg safe working load across all wheelbase configurations, giving operators reliable capacity for material handling and elevated tasks.
3
25% Grade-Ability
Climbs inclines up to 25%, ensuring stable, confident travel across uneven warehouse floors and loading dock transitions.
4
Integrated Safety & Emergency Systems
Emergency lowering, ground-and-platform emergency switches, and control system fault display work together to protect operators during every stage of use.
Manufacturing Capability
Order Picker Manufacturer for Construction
As a factory-direct order picker manufacturer, WIZPLUS operates a 40,000㎡ facility in Zhejiang, China, producing construction aerial work platforms with in-house R&D, structural engineering, and manufacturing.
Construction-Grade Precision
Laser cutting and automated welding deliver the structural durability aerial work platforms need for outdoor, job-site conditions.
OEM & ODM Customization
Flexible aerial work platform configurations built for contractor and distributor project requirements.
Factory-Direct Production
In-house R&D, design, and manufacturing of aerial work platforms, with no trading-company markup or third-party delays.
ORDER PICKER
Your Trusted Lifting Equipment Manufacturing Partner.
Applications

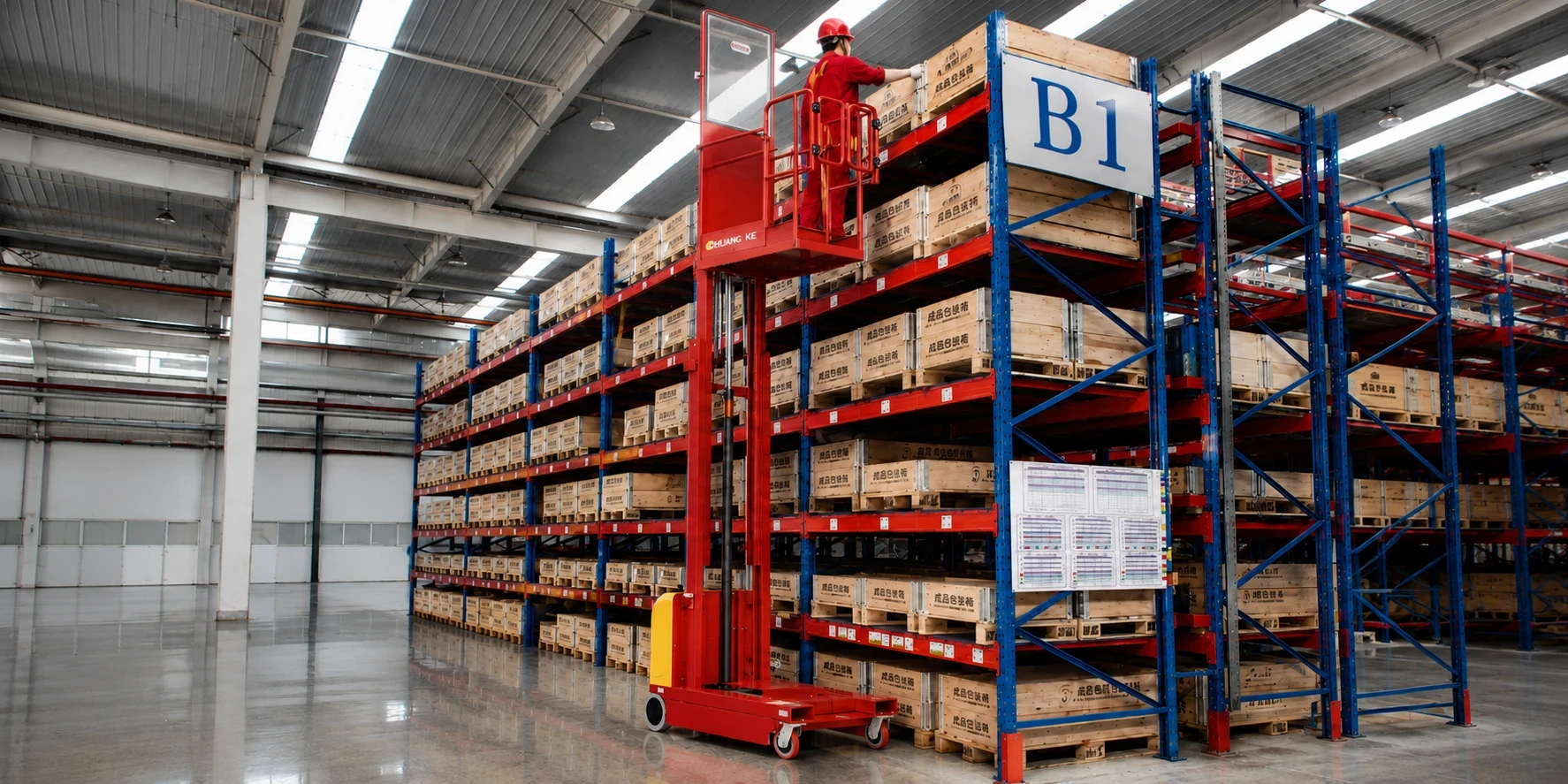

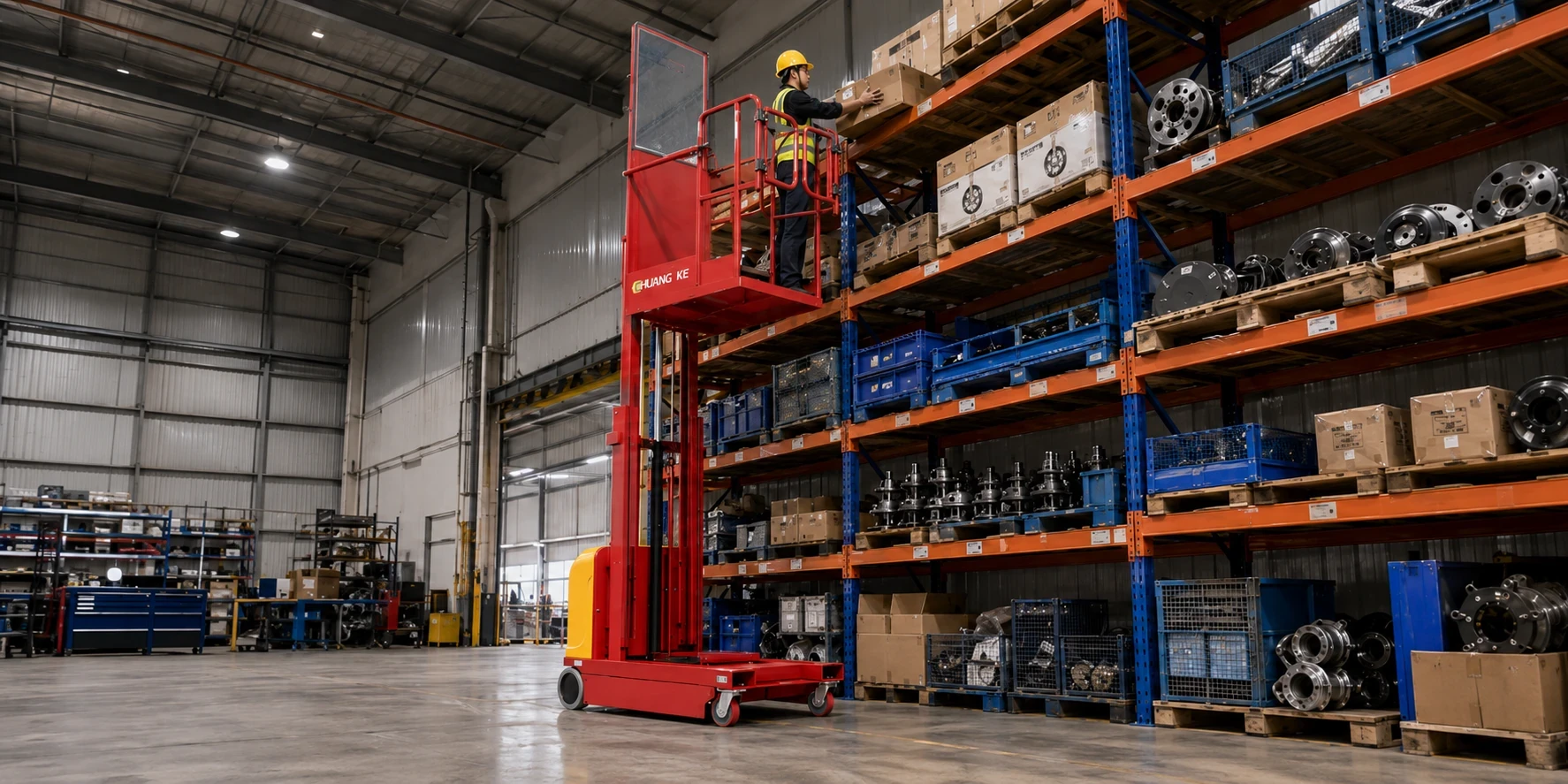

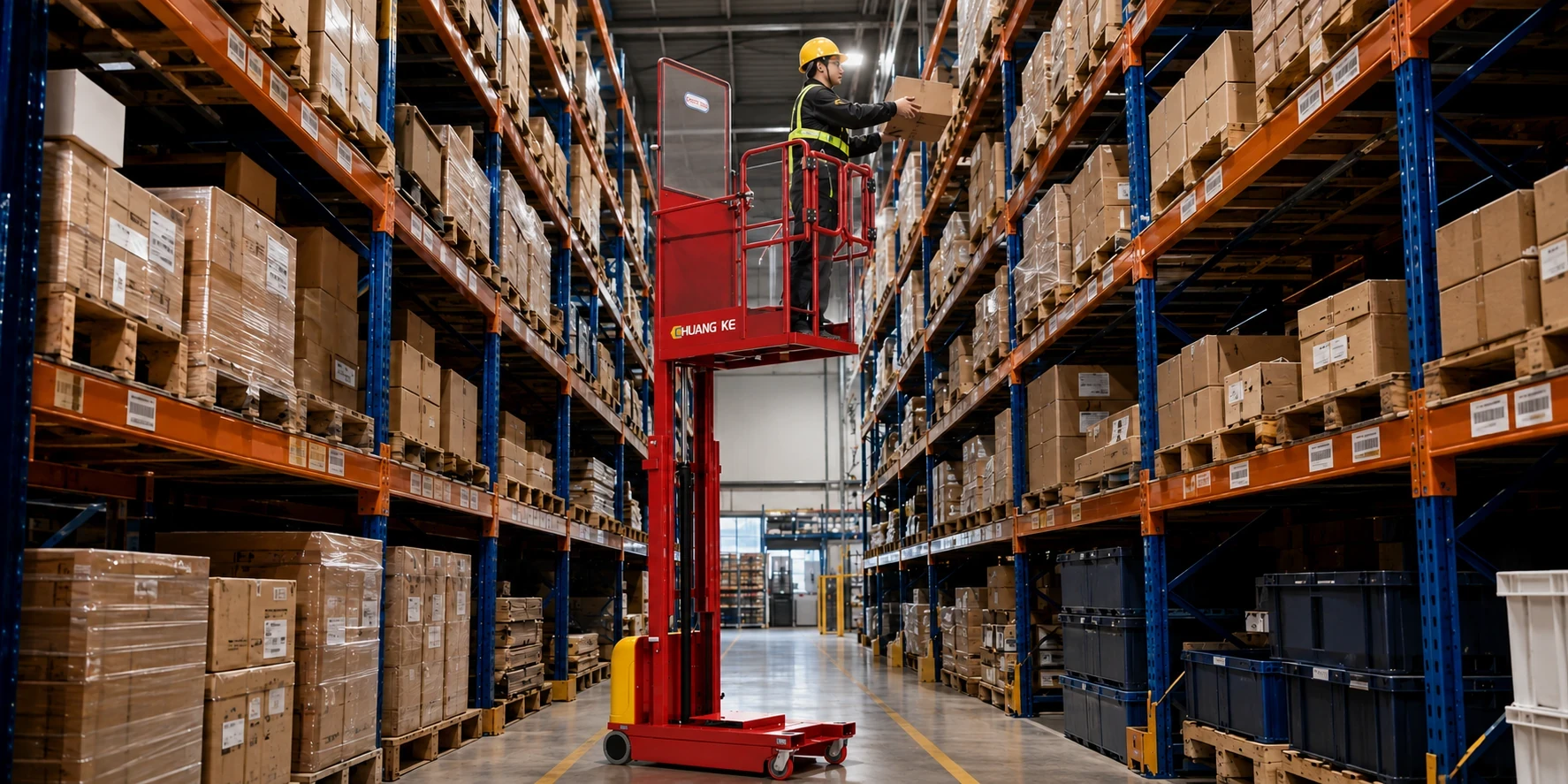

Elevated Access for the Picks That Can't Wait
The Self-Propelled Order Picker is built for the elevated tasks that keep warehouse operations moving. The three scenarios below cover where this platform delivers the most value — accurate, one-person access without slowing down daily throughput.
before order
Six Decisions Before You Place the Order
Understand the key factors before ordering Order Picker, from application needs and specifications to customization, safety standards, and delivery requirements.
1
Load Capacity & Platform Size
Quantify your actual load requirements first — maximum and minimum weight, plus the physical dimensions of what you're lifting. This determines the right platform size and working height, so the equipment fits your real workload instead of being chosen on price alone.
2
Working Height & Application Environment
Confirm your required working height and whether you're operating indoors on flat floors or outdoors on uneven terrain. This directly shapes the right drive type — electric for zero-emission indoor use, hydraulic for heavier outdoor demands.
3
Standard vs. Custom (OEM) Configuration
Standard configurations give buyers stronger negotiating leverage — typically better pricing and shorter lead times. Reserve OEM customization for genuine non-standard needs, and weigh the added cost against the specific value it delivers.
4
Certification & Regulatory Compliance
Confirm which certifications your target market requires — CE, ISO, or local safety standards. This isn't a nice-to-have; it's often the deciding factor for customs clearance and buyer acceptance.
5
Supplier Reliability & After-Sales Support
Verify the supplier's track record on bulk delivery consistency, spare parts availability, warranty terms, and technical response time. These factors shape long-term cost of ownership more than unit price alone.
6
Total Landed Cost — Not Just Unit Price
Look beyond the sticker price to MOQ, payment terms, Incoterms, and lead time. A lower unit price paired with unclear terms often ends up costing more than a slightly higher price backed by reliable conditions.
FAQ
Common Questions From Fire-Safety Engineers and Buyers
If you have any further questions,please visit the Even Support Center.
Buyer Persona
Can WIZPLUS provide OEM order picker solutions for distributors?
What certifications are available for WIZPLUS order pickers?
What is the minimum order quantity for bulk orders?
Product Comparison
What's the difference between a scissor lift and a self-propelled order picker?
Can a self-propelled order picker be used outdoors on construction sites?
What load capacity do I actually need for a warehouse aerial work platform?
WIZPLUS Sourcing
Is WIZPLUS a manufacturer or a trading company?
Does WIZPLUS offer OEM/ODM customization for distributors?
What's the typical lead time when ordering from WIZPLUS?
Safety & Certification
Do aerial work platforms require operator training or certification?
What safety features should I check for before buying?
Does WIZPLUS provide safety documentation or certification with each order?
