Scissor Lift Platform
Model:
CKJC-Y
Series
A compact, battery-powered scissor lift built for efficient elevated access, combining a stable high-rigidity structure with low-profile folding design for easy transport and space-saving storage. Available across three working heights (5m to 6.8m), with extendable platforms, foldable guardrails, and emergency lowering for maintenance, installation, and material-handling tasks.
STANDARDS & CERTIFICATIONS
CE
ANSI
ISO 9001 QMS
SPECIFICATIONS
Construction
Technical Data
WIZPLUS Semi Electric Scissor Lift Platform Series Comparison
Compare working height, load capacity, and chassis dimensions across the CKJC0503Y, CKJC0604Y, and CKJC0705Y models to find the right fit for your application.
Dimensions
CKJC0503Y
CKJC0604Y
CKJC0705Y
Minimum ground clearance (mm)
50
50
50
Wheelbase (mm)
1110
1110
1110
Wheelbase front wheel (mm)
670
670
710
Wheelbase rear wheel (mm)
670
670
710
Outrigger span (mm)
/
1330
1380
Safe working load (kg)
300
300
300
Tire (mm)
φ200*50
φ200*50
φ200*50
Feature 01
Manual Stabilizer Jack
The adjustable stabilizer jack provides firm ground support, improving stability and reducing movement during lifting operations.
Feature 02

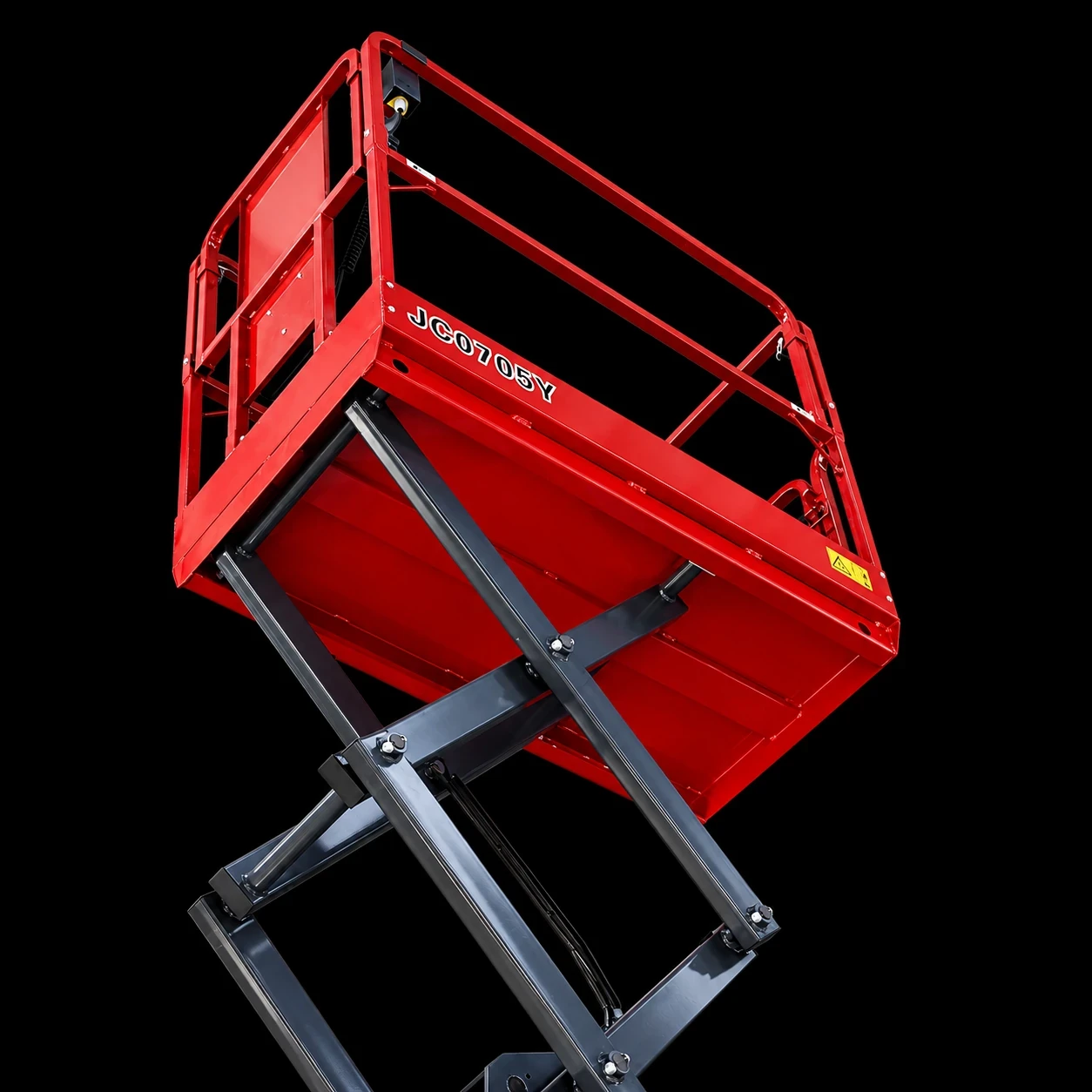

Scissor Lift Platform & Scissor Mechanism
The reinforced scissor mechanism provides smooth vertical lifting, while the guardrail platform offers a secure elevated working area.
Feature 03

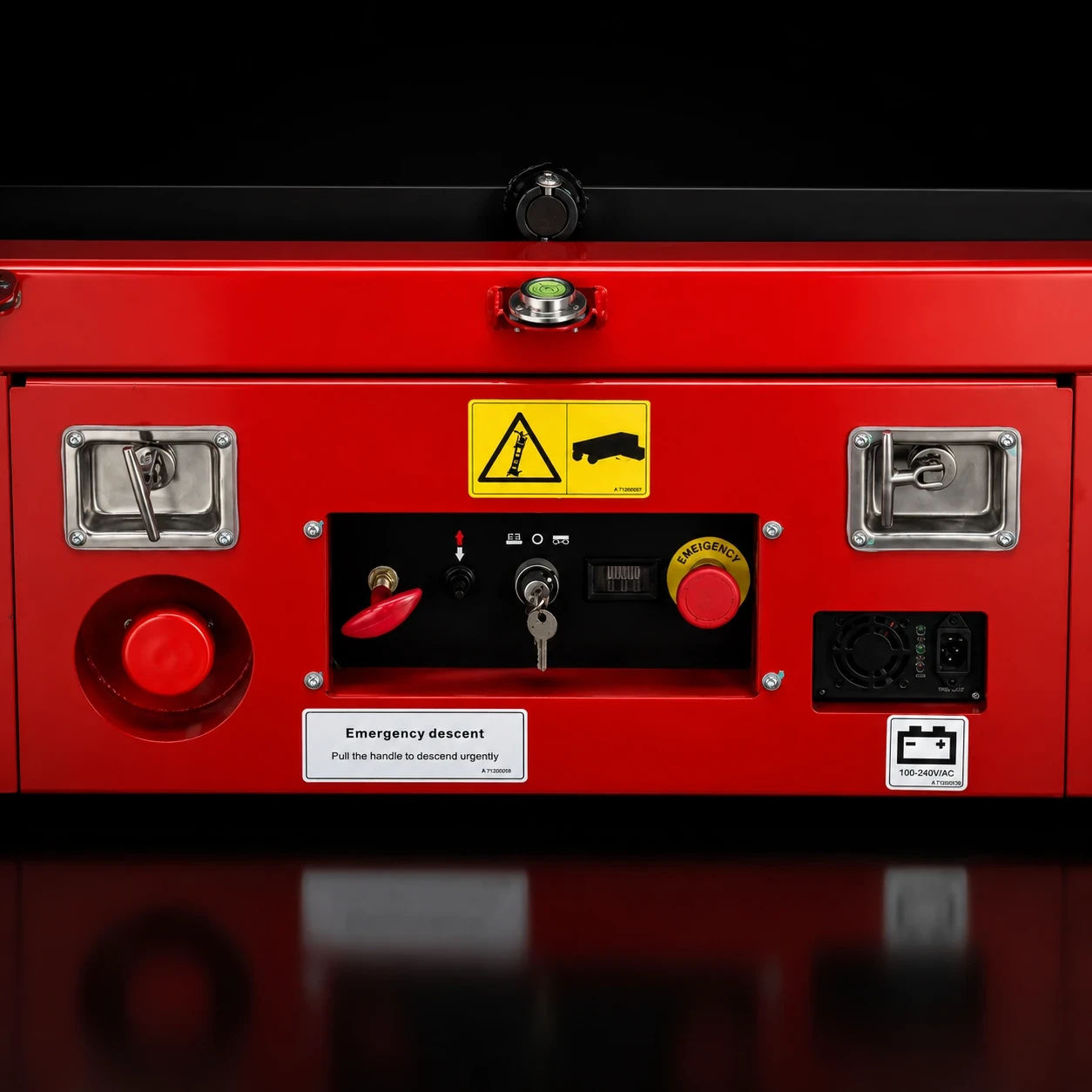

Lower Control Panel
The lower control panel integrates operating switches, status controls and an emergency stop for convenient ground-level operation.
Feature 04

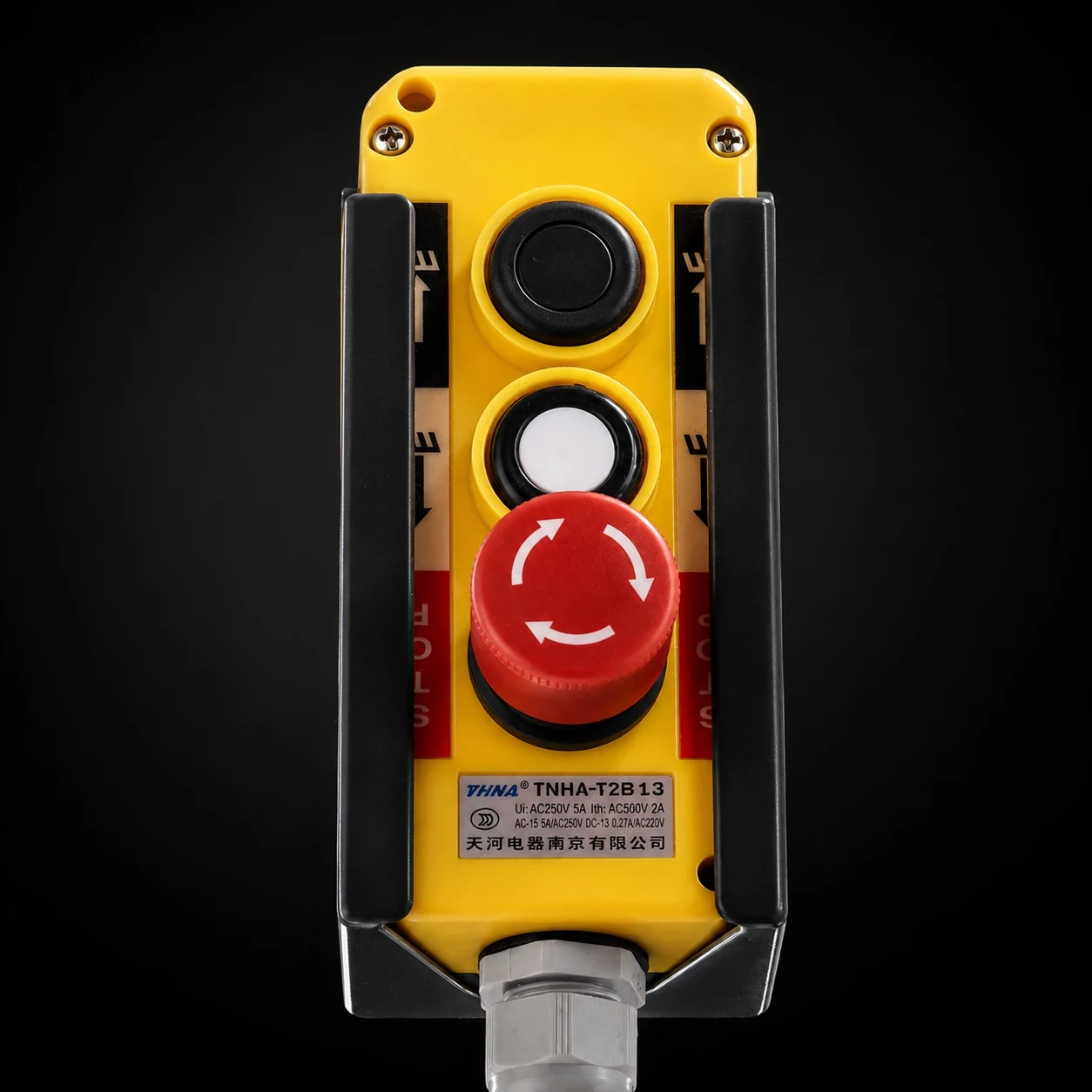

Upper Control Box
The handheld upper controller provides convenient platform operation with simple lift controls and an emergency stop button.
CAPABILITIES
Precision-built at scale
Every WIZPLUS machine is manufactured in-house at a 40,000-square-meter facility in Deqing, Huzhou — where laser cutting and robotic welding lines keep tolerances tight and quality consistent, unit after unit.
One supplier, every lifting height
WIZPLUS's product range spans both ends of the spectrum — including order pickers reaching up to 4 meters — so customers rarely need to look elsewhere for aerial access equipment.
Support that travels with you
A dedicated international service hub, running since 2023, keeps customers in Southeast Asia, Europe, and the Middle East supplied with parts and technical support — no matter the time zone.
Engineering without limits
From standard industrial models to fully bespoke OEM builds rated up to 100,000 kg, WIZPLUS's in-house design and R&D team adapts to whatever the application demands.
Key Features
1
Manual Positioning Keeps Purchase & Operating Cost Down
Battery power handles vertical lift while positioning stays manual — a simpler system than fully self-propelled models, which typically means a lower unit cost and fewer components to maintain over the equipment's lifespan.
2
Foldable Design Cuts Shipping & Storage Costs
The folding guardrail geometry and low stowed height mean more units fit per container and per storage footprint — a real consideration for distributors ordering in volume or facilities with limited storage space.
3
Cross-Cylinder Scissor Mechanism Built for Structural Reliability
High structural rigidity from the cross-cylinder design reduces platform sway during elevated tasks — a durability detail that matters more over years of daily use than it does on a spec sheet.
4
OEM Flexibility Without a Custom-Order Price Jump
Optional configurations — lithium-ion battery, AC power to platform, extension platform — let distributors tailor the unit to a specific market without committing to a fully custom build from scratch.
Manufacturing Capability
In-House Production from Design to Final Assembly
R&D, laser cutting, CNC forming, and robotic welding all happen within our own 40,000㎡ facility — no outsourced sub-assemblies, no third-party factory to negotiate design changes or quality issues through.
Built for Large, Consistent Export Orders
50-ton and 16-ton cranes and high-ceiling workshops give us the capacity to produce heavier structural components at volume, so bulk and distributor orders don't compromise build consistency unit to unit.
Fast Turnaround on Standard Configurations
Because standard models are built on an established production line rather than engineered from scratch each time, catalog orders typically ship faster than fully custom builds — useful when a distributor's timeline can't absorb a long lead time.
Export Experience Across Multiple Regulatory Markets
Years of shipping to distributors and buyers across Europe, the Americas, the Middle East, and Southeast Asia means we're already familiar with the certification, documentation, and packaging variations different markets require.
SCISSOR LIFT PLATFORM
Your Trusted Lift Platform Manufacturing Partner.
Applications

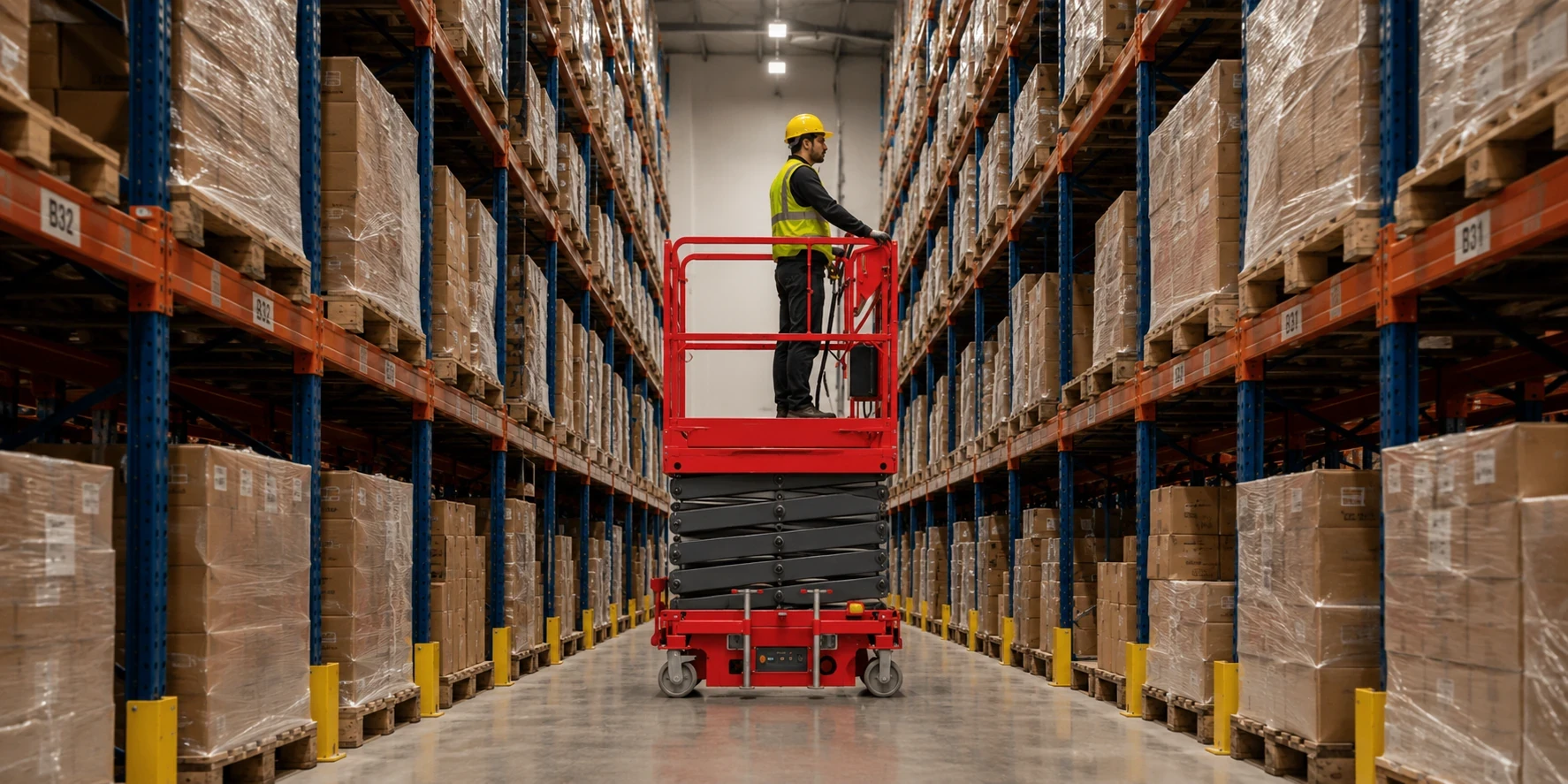

Elevated Access for the Picks That Can't Wait
The Self-Propelled Order Picker is built for the elevated tasks that keep warehouse operations moving. The three scenarios below cover where this platform delivers the most value — accurate, one-person access without slowing down daily throughput.
before order
Six Decisions Before You Place the Order
Understand the key factors before ordering Order Picker, from application needs and specifications to customization, safety standards, and delivery requirements.
1
Confirm Working Height vs. Platform Height
Buyers who quote platform height instead of working height often end up with equipment that's short of the actual reach needed on-site — an easy mix-up that surfaces only after delivery.
2
Size Load Capacity to the Full Task, Not Just the Operator
A 300kg rating looks sufficient until tools and materials are added to the platform. Confirm your combined task weight upfront — resizing after ordering means starting the sourcing process over.
3
Measure Chassis Width Against Your Tightest Access Point
A unit that meets every spec but can't fit through your narrowest aisle or elevator is a wasted order. Measure access points before selecting a model, not after it arrives.
4
Match Battery Type to Your Shift Schedule
An 8-hour charge cycle works fine for single-shift operations but creates downtime on a two-shift floor. Confirm charging time and battery type against your actual operating hours before ordering, not after the first week of use.
5
Verify Certification for Your Destination Market
Certification requirements differ by country — an uncertified unit can stall at customs regardless of build quality. Confirm CE, ISO, or local equivalents apply to your specific market before placing the order, not after it's stuck at the port.
6
Clarify Total Landed Cost, Not Just Unit Price
A lower unit price paired with unclear MOQ, payment terms, or Incoterms often costs more once shipping delays or liability disputes surface. Get these terms confirmed in writing before committing, not negotiated after a deposit is paid.
FAQ
Common Questions From Fire-Safety Engineers and Buyers
If you have any further questions,please visit the Even Support Center.
Comparison Questions
Which lift is better, hydraulic or electric?
What's the difference between semi-electric and fully electric scissor lifts?
Is a semi-electric scissor lift good enough for daily warehouse use?
Safety & Environment Questions
Can you use an electric scissor lift outside?
Can electric scissor lifts get wet?
Are portable scissor lifts safe?
Technical & Charging Questions
Where do you plug in an electric scissor lift to charge it?
How long does it take to charge a semi-electric scissor lift?
Does the CKJC series offer battery upgrade options?
WIZPLUS Product-Specific Questions
What working heights are available in the CKJC Semi-Electric series?
What's the safe working load across the CKJC Semi-Electric series?
Can the CKJC Semi-Electric series be customized for OEM or distributor orders?
