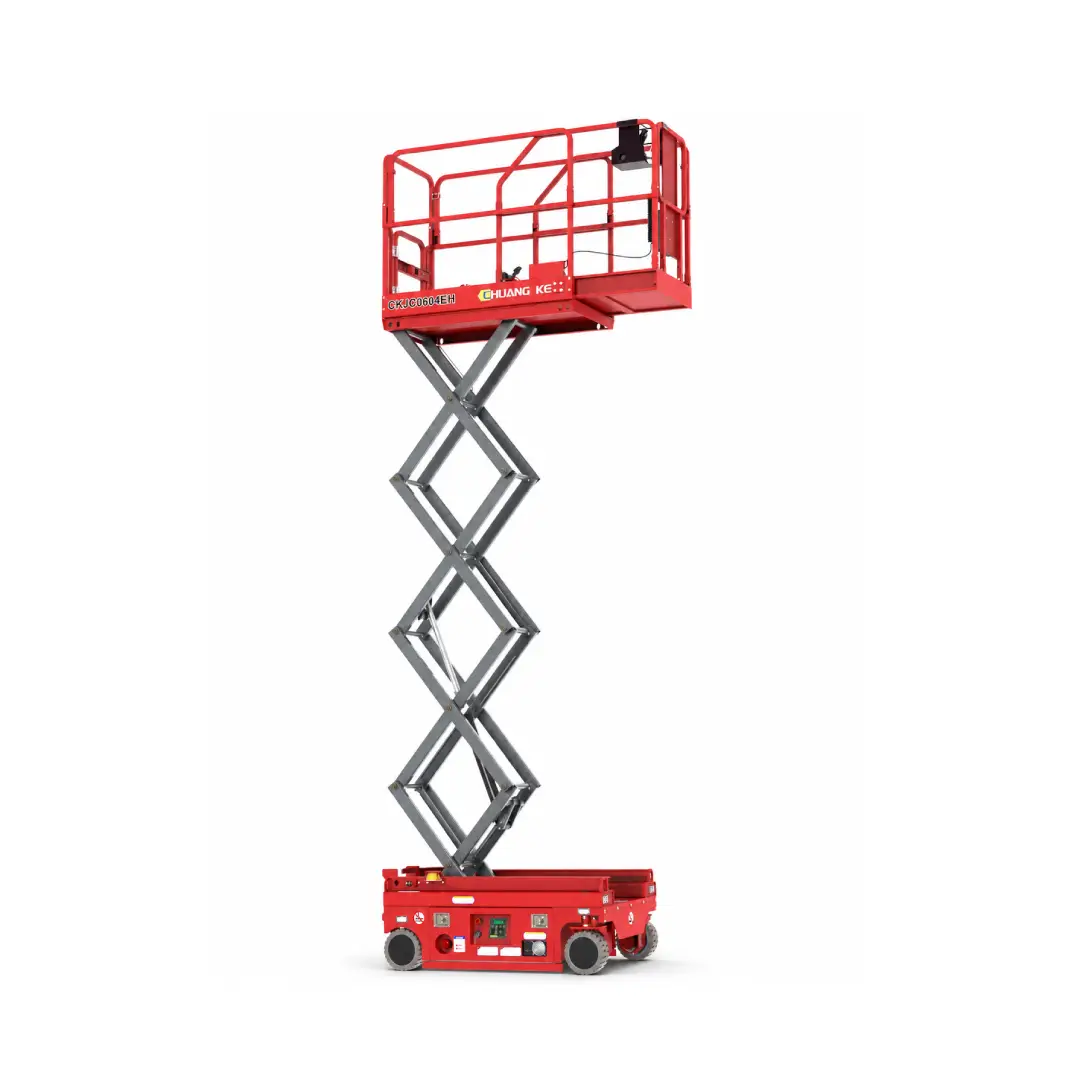

Electric Mobile Scissor Lift
Model:
CKJC-EH
Series
Compact electric scissor lift with hydraulic steering for smooth, fully powered travel — no towing, no external power needed. Proportional handlebar controls, real-time fault diagnostics, and full built-in safety protections deliver precise, low-maintenance operation at full platform height, with working heights from 5m to 6.8m across four models to match different reach requirements.
STANDARDS & CERTIFICATIONS
CE
ANSI
ISO 9001 QMS
SPECIFICATIONS
Construction
Technical Data
Small Electric Scissor Lift Platform (Hydraulic Steering) Series Comparison
Compare working heights, load capacities, platform dimensions, drive systems, and key technical specifications across the WIZPLUS Small Electric Scissor Lift Platform series to find the model that best fits your application.
Dimensions
CKJC0503EH
CKJC5636EH
CKJC0604EH
CKJC0705EH
Extended table length (mm)
600
600
600
600
Minimum ground clearance (mm)
60
60
60
60
Wheelbase (mm)
1040
1060
1060
1060
Wheelbase front wheel (mm)
670
670
670
670
Wheelbase rear wheel (mm)
670
670
670
670
Machine weight (kg)
710
750
780
820
Safe working load (kg)
300
300
300
300
Extension platform load (kg)
113
113
113
113
Tire (mm)
φ230*80
φ230*80
φ230*80
φ230*80
Feature 01

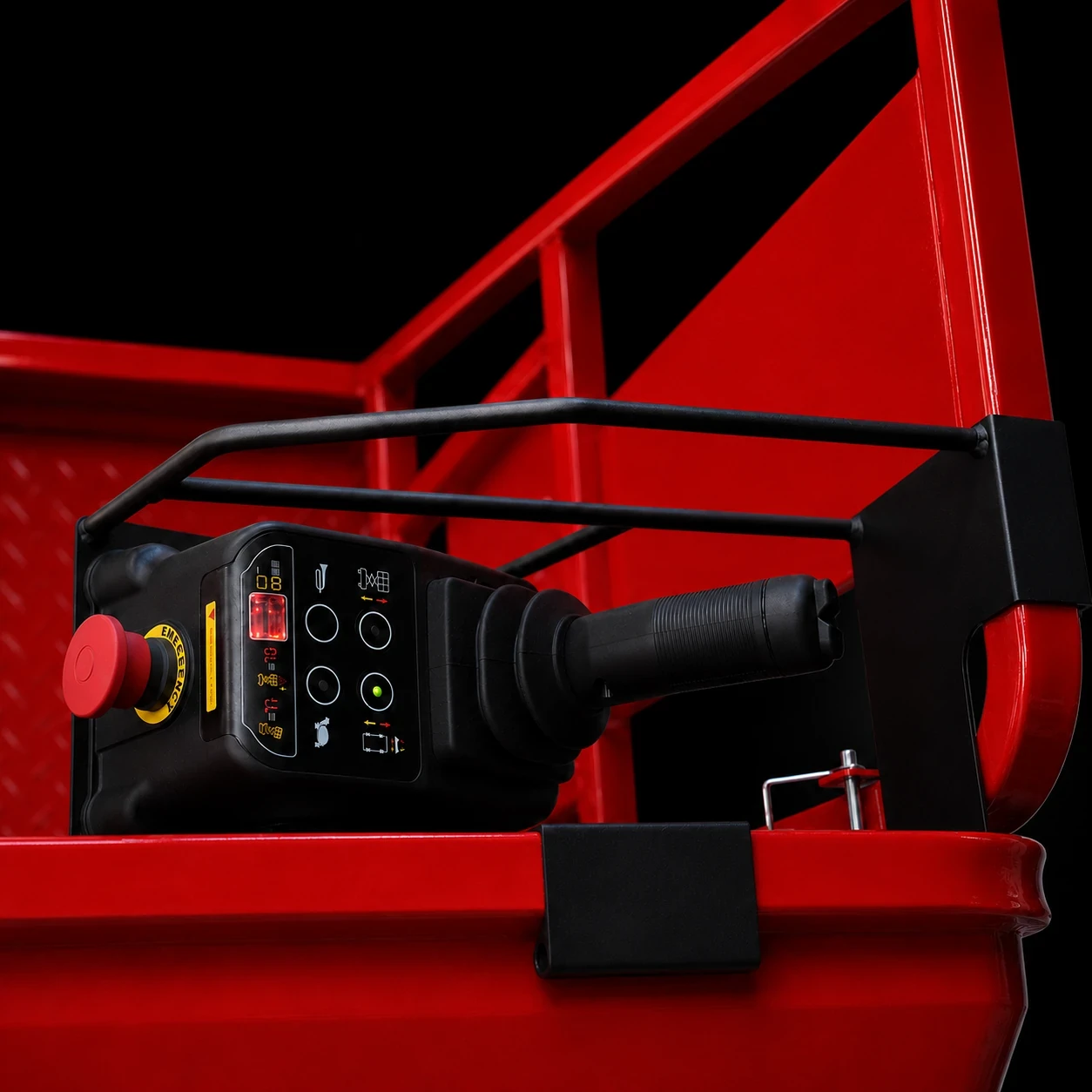

Precise and Easy Operation
The ergonomic upper control panel provides intuitive controls for lifting, lowering and platform movement, allowing operators to work safely and efficiently.
Feature 02
Secure Elevated Working Area
The spacious platform is equipped with strong safety guardrails, providing operators with a stable and protected working environment at height.
Feature 03

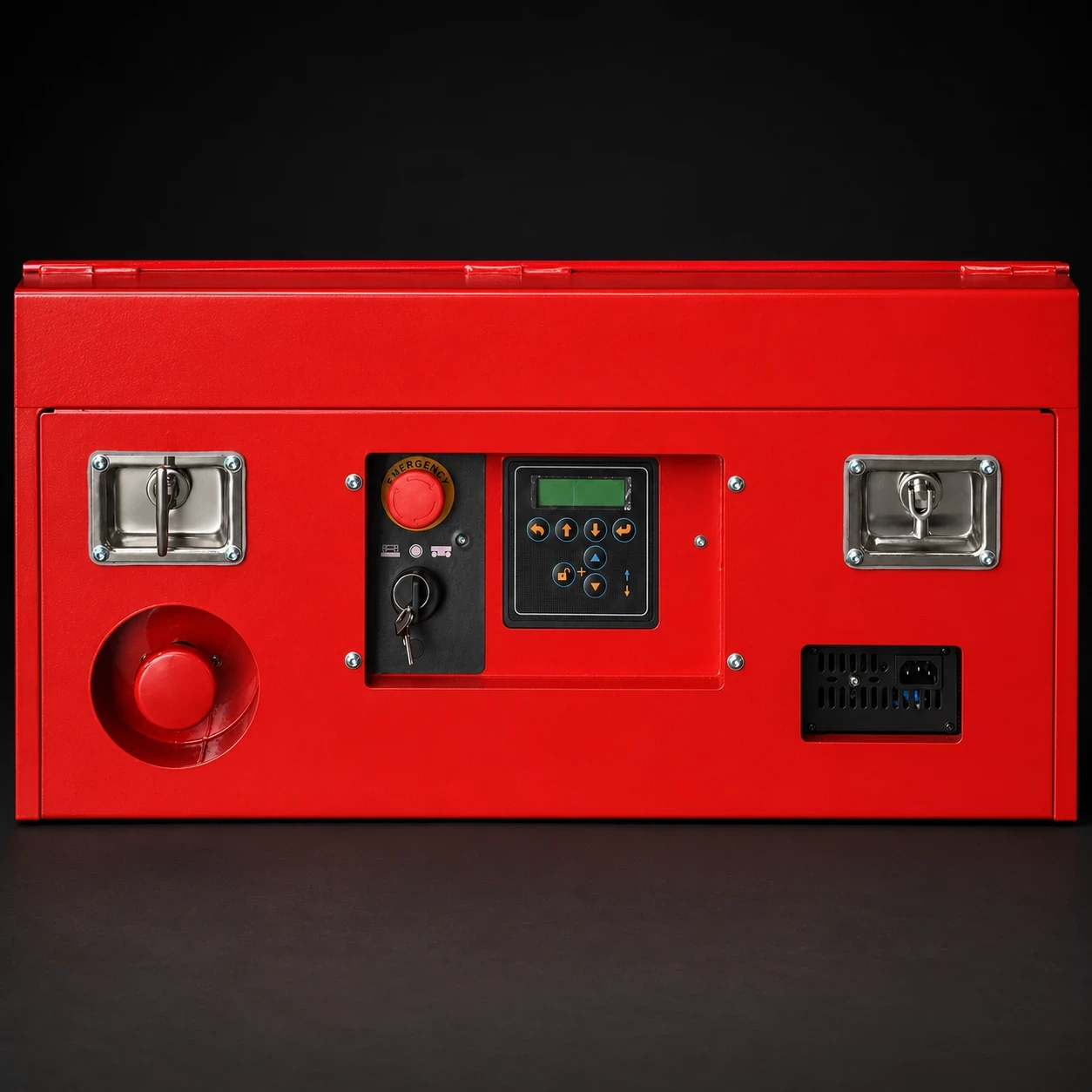

Convenient Ground-Level Control
The lower control panel integrates operating switches, status indicators and an emergency stop button for easy ground operation, inspection and emergency control.
Feature 04

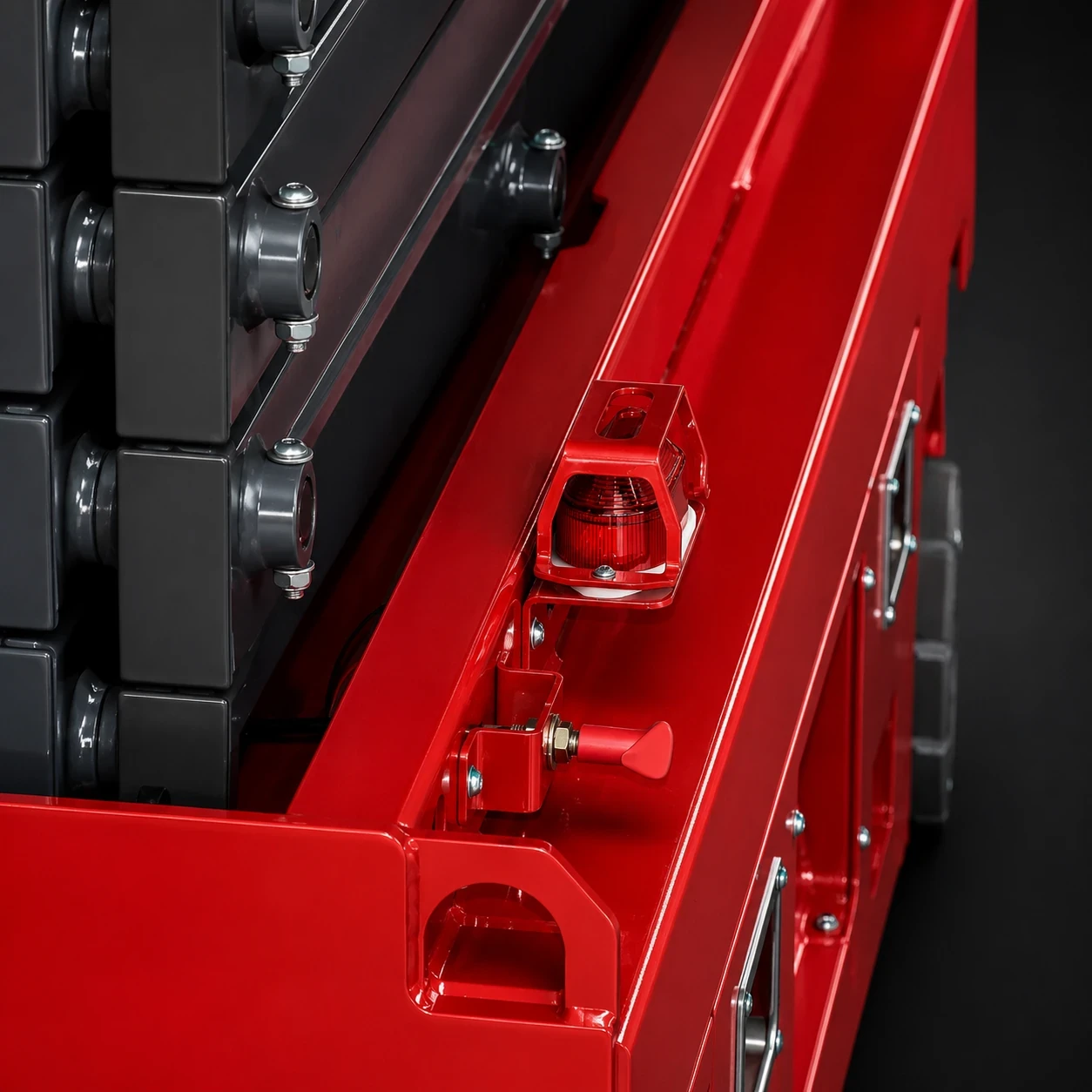

Enhanced Operational Safety
The strobe warning light and audible buzzer provide clear visual and sound alerts while the equipment is operating, helping protect nearby workers and reduce accident risks.
CAPABILITIES
High-Power Laser Cutting Precision
12,000W high-power laser cutting machines and 4,000W automatic laser pipe cutters produce the tight structural tolerances scissor lift chassis and arms require for long-term stability.
CNC Forming for Complex Structural Parts
300-ton CNC bending machines and fully CNC intelligent pipe bending machines shape structural steel with a consistency manual forming can't match across large production volumes.
Integrated Surface Treatment
An in-house intelligent painting assembly line handles spraying paint, spraying plastic, and electrophoresis on large equipment, keeping finishing quality consistent without outsourcing.
Dedicated Testing & Experimental Facilities
On-site testing equipment and an experimental center validate products and components before shipment, rather than relying solely on final visual inspection.
Key Features
Built-in safety, precise control, and effortless maneuvering — engineered to keep aerial access simple, stable, and reliable at every height.
1
Hydraulic Steering, No Towing Required
Fully powered drive and steering — no towing or external power needed to reposition, even at full platform height.
2
Proportional Handlebar Controls
A proportional valve delivers smooth, precise control over lift and travel, reducing jerky movement during positioning.
3
Full Built-In Safety Protections
Self-locking platform doors, automatic braking, emergency descent, tilt alarm, motion beeper, and strobe lights work together to keep every lift secure.
4
Real-Time Fault Diagnostics
An intelligent interface flags issues as they happen, helping reduce unplanned downtime compared to manual inspection alone.
Manufacturing Capability
High-Power Laser Cutting for Structural Precision
12,000W laser cutting machines and 4,000W automatic laser pipe cutters give scissor arms and chassis frames the tight, repeatable tolerances heavier-gauge steel needs for long-term structural stability.
CNC Forming & Robotic Welding for Consistent Builds
300-ton CNC bending machines and a welding robot assembly line reduce the joint-to-joint variation that comes from manual welding across large production runs.
A Facility Built for Heavy Structural Components
A 40,000㎡ facility with 50-ton and 16-ton cranes and high-ceiling workshops handles the oversized components heavier-duty scissor lift platforms require.
Integrated Finishing & Testing, Not Outsourced
An in-house painting line and dedicated testing equipment mean surface treatment and quality testing happen alongside fabrication — not at a third-party shop.
ELECTRIC SCISSOR LIFT
Your Trusted Scissor Lift Manufacturing Partner.
Applications

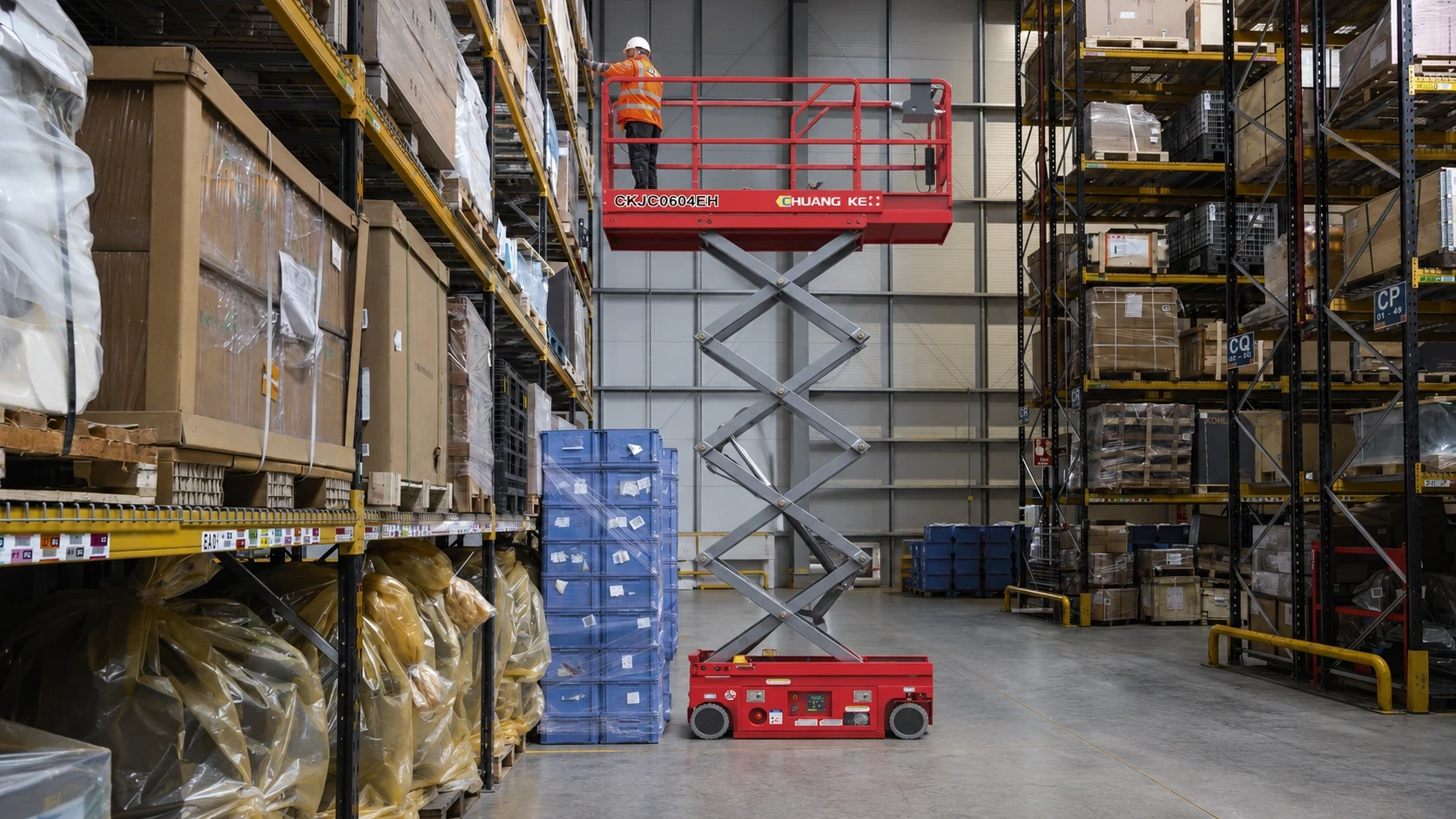

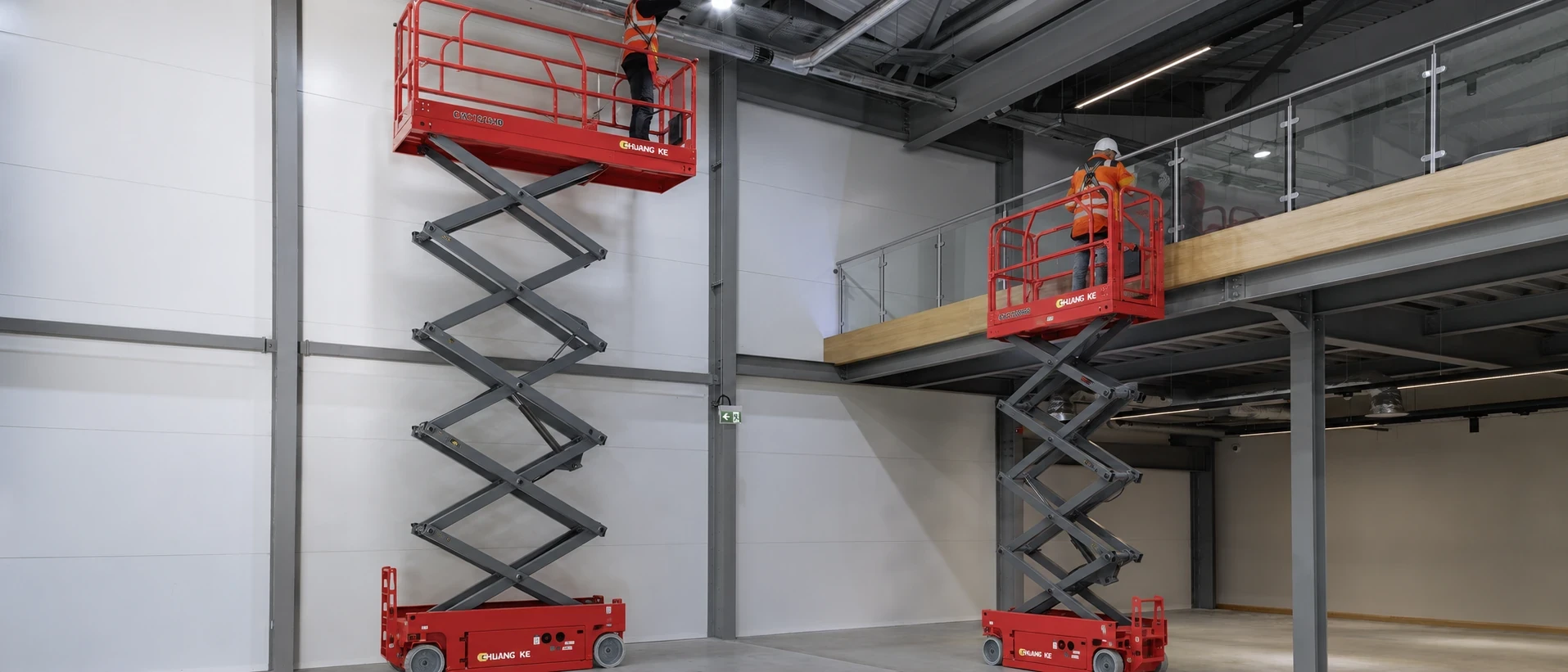

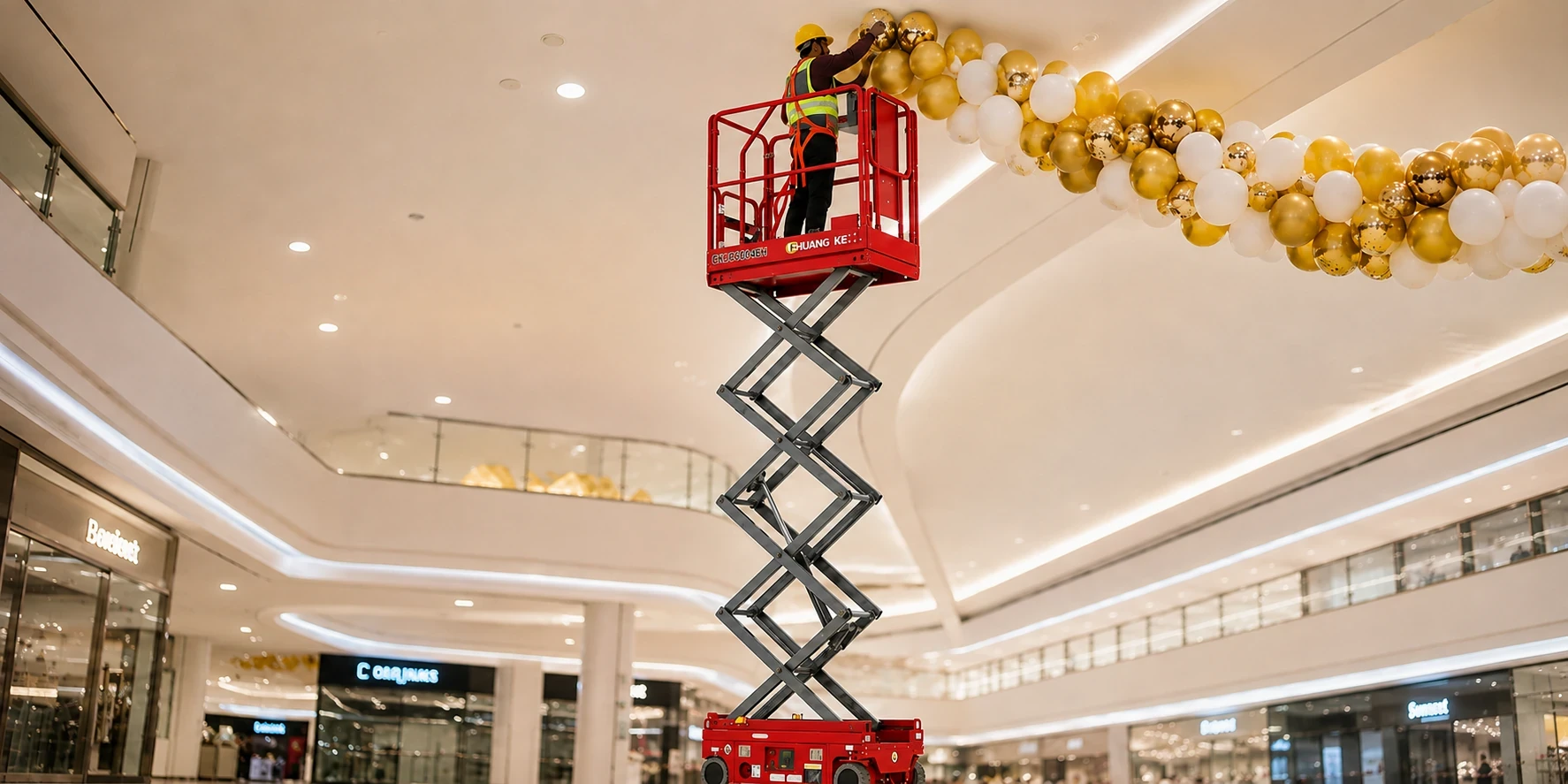

Small Electric Scissor Lift Platform — Application Scenarios
Engineered for Reliable Elevated Access
Compact enough for narrow aisles, stable enough for repetitive lifting — built for the everyday picking and light maintenance tasks warehouses and retail spaces actually run into.
before order
Six Key Considerations Before Ordering a electric scissor lift
Understand the key considerations before ordering an order picker, including application requirements, working height, load capacity, customization options, safety compliance, and delivery planning.
1
Working Height vs. Platform Height
Confirm whether your requirement is working height (platform height plus average reach, typically +1.5–2m) or platform height itself — quoting the wrong figure is one of the most common sizing mistakes, and it can leave a crew short of the access they actually need.
2
Platform Load Capacity for the Actual Task
Size to the combined weight of operator, tools, and materials carried up together — not just body weight. A 300kg rating looks generous until a toolbox and spare parts are added to the load.
3
Chassis Width for Aisle & Elevator Access
Measure your narrowest aisle and elevator opening before selecting a model. Compact chassis widths (750–800mm on smaller units) matter far more indoors than platform height does, since a lift that can't fit through the space is unusable regardless of capacity.
4
Floor Type & Ground Bearing Pressure
Finished warehouse flooring, unfinished construction slab, and outdoor pavement all carry different load-bearing tolerances. Confirm the unit's ground bearing pressure and grade-ability rating against your actual floor conditions, not just its stated indoor/outdoor classification.
5
Battery Type & Charging Cycle
Match battery type (standard vs. maintenance-free vs. lithium-ion) and charge time to your operating schedule. A unit needing an 8-hour charge doesn't fit a facility running two shifts without a second battery or a faster-charging option.
6
Certification & Safety Documentation for Your Market
Confirm which certifications (CE, ISO, or local equivalents) apply to your destination market before ordering — this is a customs and compliance requirement, not just a quality signal, and it varies by region rather than being universal.
FAQ
Common Questions From Fire-Safety Engineers and Buyers
If you have any further questions,please visit the Even Support Center.
Definition & Basics
What is electric hydraulic power steering?
What is a mobile scissor lift?
Are there electric scissor lifts?
Comparison Questions
What's the difference between hydraulic steering and manual steering on an electric scissor lift?
How does a small electric scissor lift compare to a larger hydraulic-drive model?
Technical & Safety Questions
What safety features come standard on this electric scissor lift?
Does the platform give operators real-time feedback if something's wrong?
What's the difference between fully proportional controls and standard on/off controls?
WIZPLUS Product-Specific Questions
What working heights are available across the CKJC series?
Can the CKJC series be customized for OEM orders?
What battery options are available for the CKJC series?
