Dimensions
OPY Series (Semi-Electric)
OP Series (Full Electric)

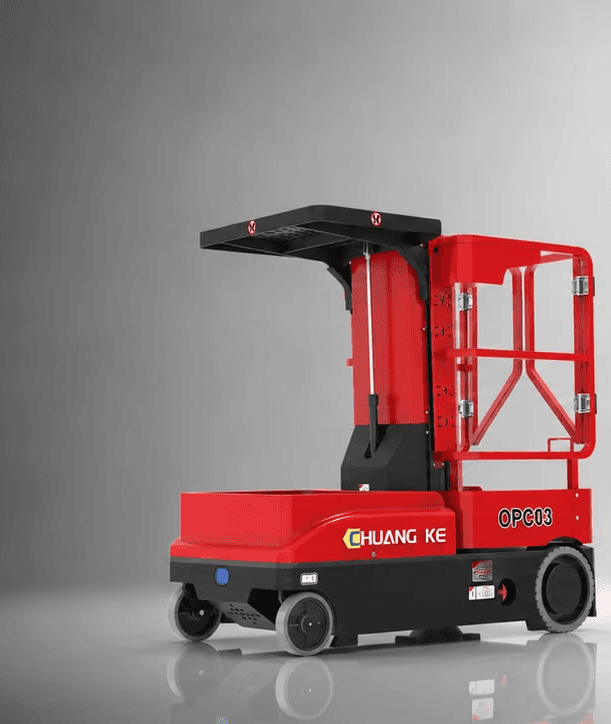

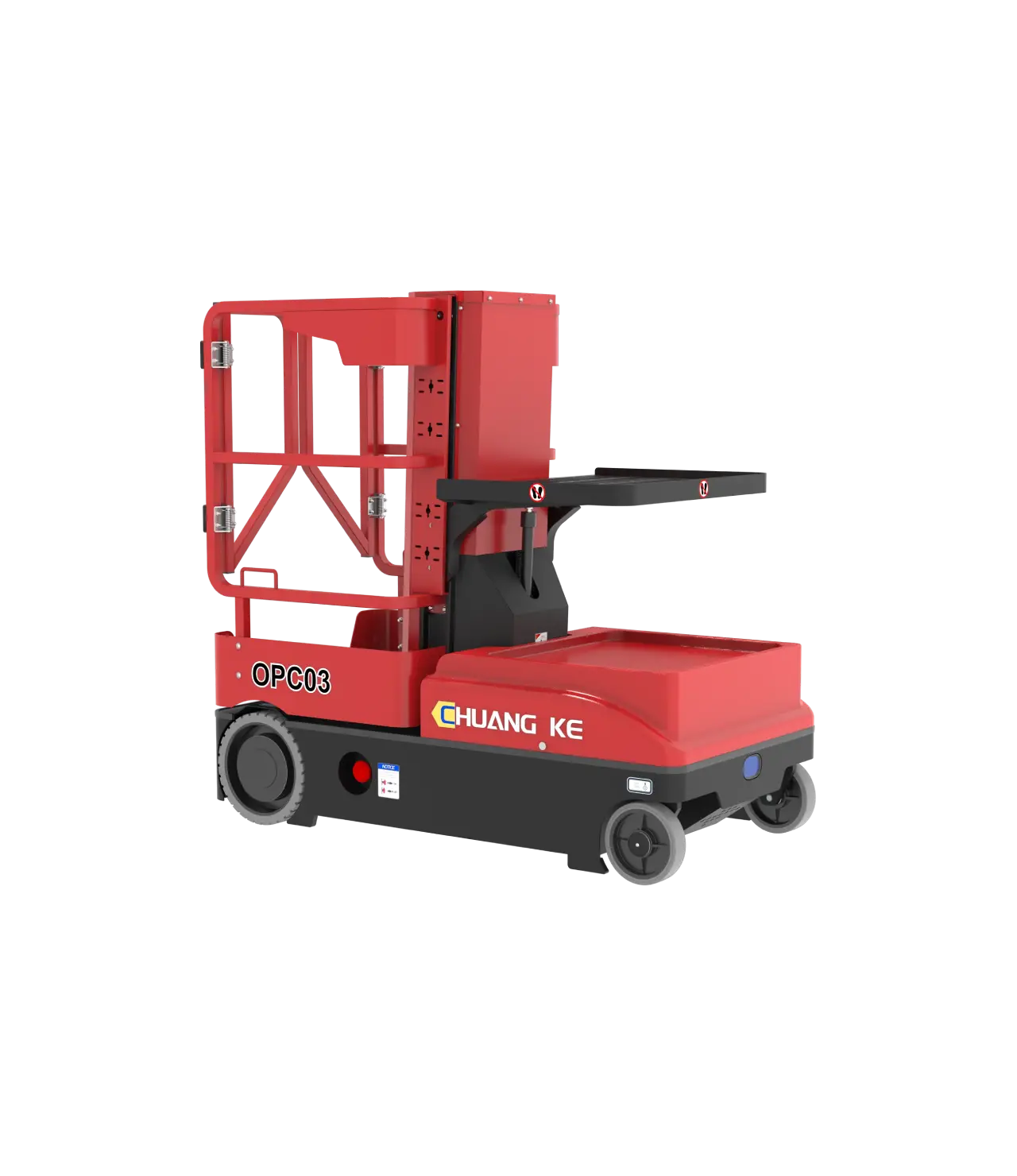

OPC Series (Order Picking Lift)
Drive
Electric Lift / Manual Travel
Fully Electric Drive, Steer, and Lift
Fully Electric, Simultaneous Lift and Drive
Safe Working Load
200 kg
300 kg
Varies by model
Chassis
Compact, Narrow-Aisle
Compact, Zero Turning Radius
750 mm, Narrow-Aisle
Best For
Light-duty, budget-conscious single-operator picking
High-volume picking with frequent repositioning
Large-scale, dual-operator overhead handling
Max Safe Working Height
4,480–6,500 mm
5,000–6,500 mm
5,000–6,000 mm
Max Platform Height
2,700–4,500 mm
3,000–4,500 mm
3,000–4,000 mm
Machine Weight
300–430 kg
525–710 kg
800–850 kg
Ground Clearance
30 mm
40 mm
12 mm
Application Scenarios Order Picking for (OPY Series)
Warehouses and retail backrooms with narrow aisles and standard passenger or freight elevator access, enabling efficient multi-floor operations and flexible indoor mobility.

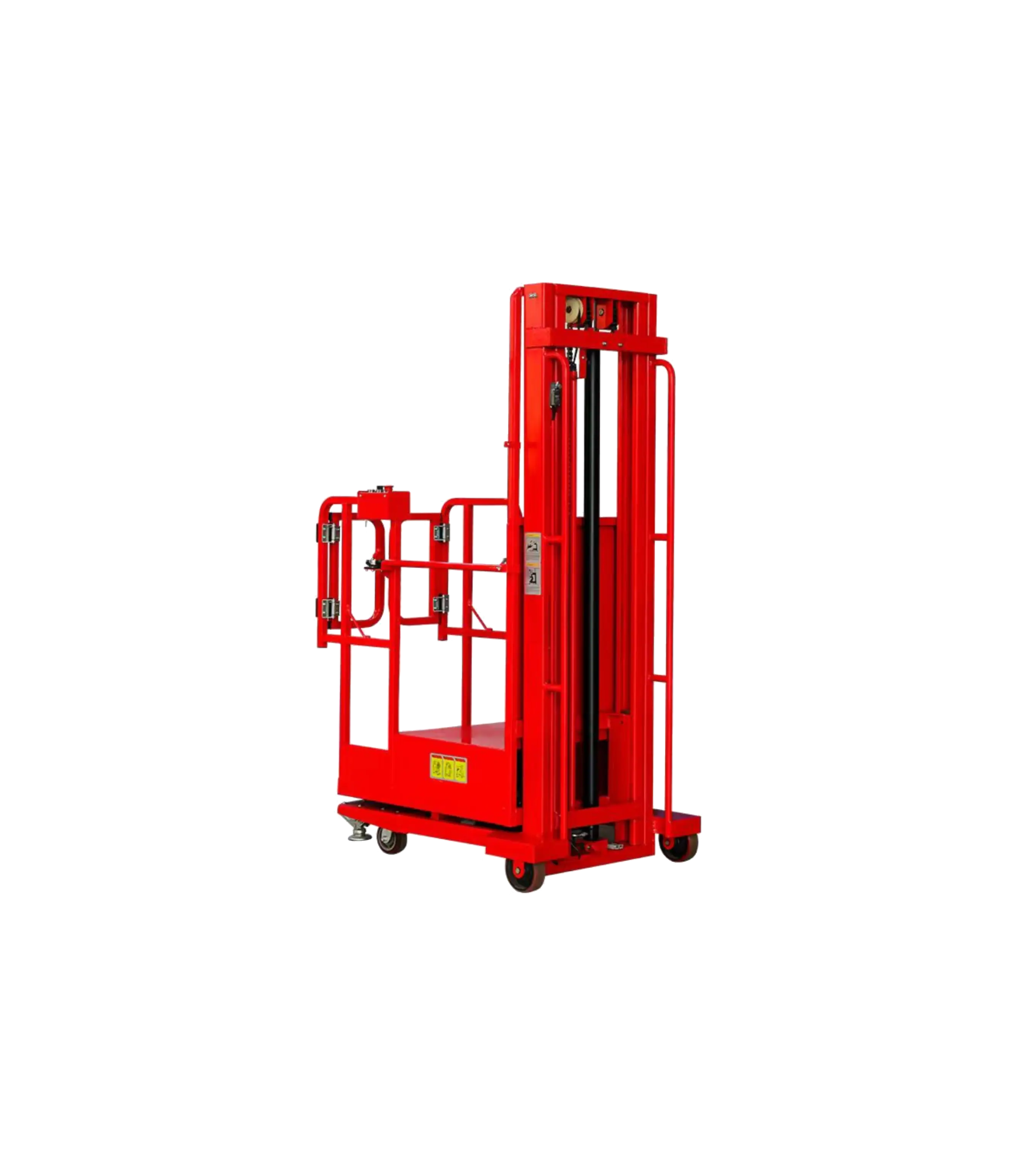

How WIZPLUS OPY Series Works
OPY series combines a DC battery-driven motor and hydraulic pump for vertical lifting, while horizontal movement is manual. This hybrid design keeps the chassis compact and lightweight, allowing the unit to maneuver through narrow aisles and fit inside standard elevators.
Why This Solution Fits
Single-operator use and a simplified mechanical structure keep maintenance requirements low, making OPY series suited to repetitive picking tasks where budget are the primary constraints.
Application Scenarios Throughput Picking (OP Series)
Warehouse and retail logistics operations with high picking volumes, requiring frequent repositioning between locations and efficient workflow management.

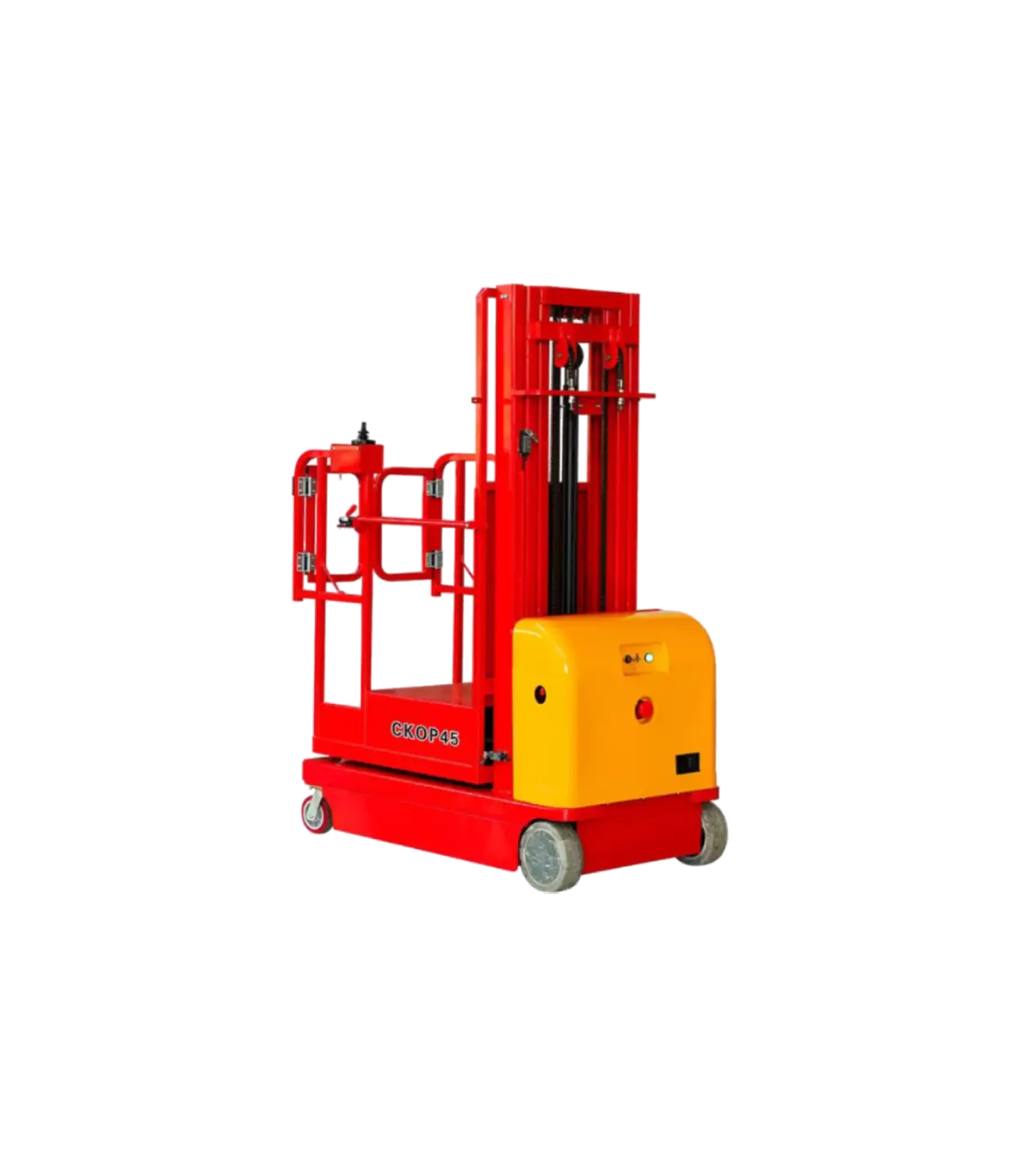

How WIZPLUS OP Series Works
The OP series integrates battery-powered drive, steering, and lift systems, giving the operator complete platform-level control of horizontal travel, direction, and vertical elevation without manual pushing, improving efficiency in demanding warehouse operations.
Why This Solution Fits
Full self-propulsion removes the manual push step, cutting cycle time between picks and reducing operator physical strain in operations with sustained picking volume.
Key Components

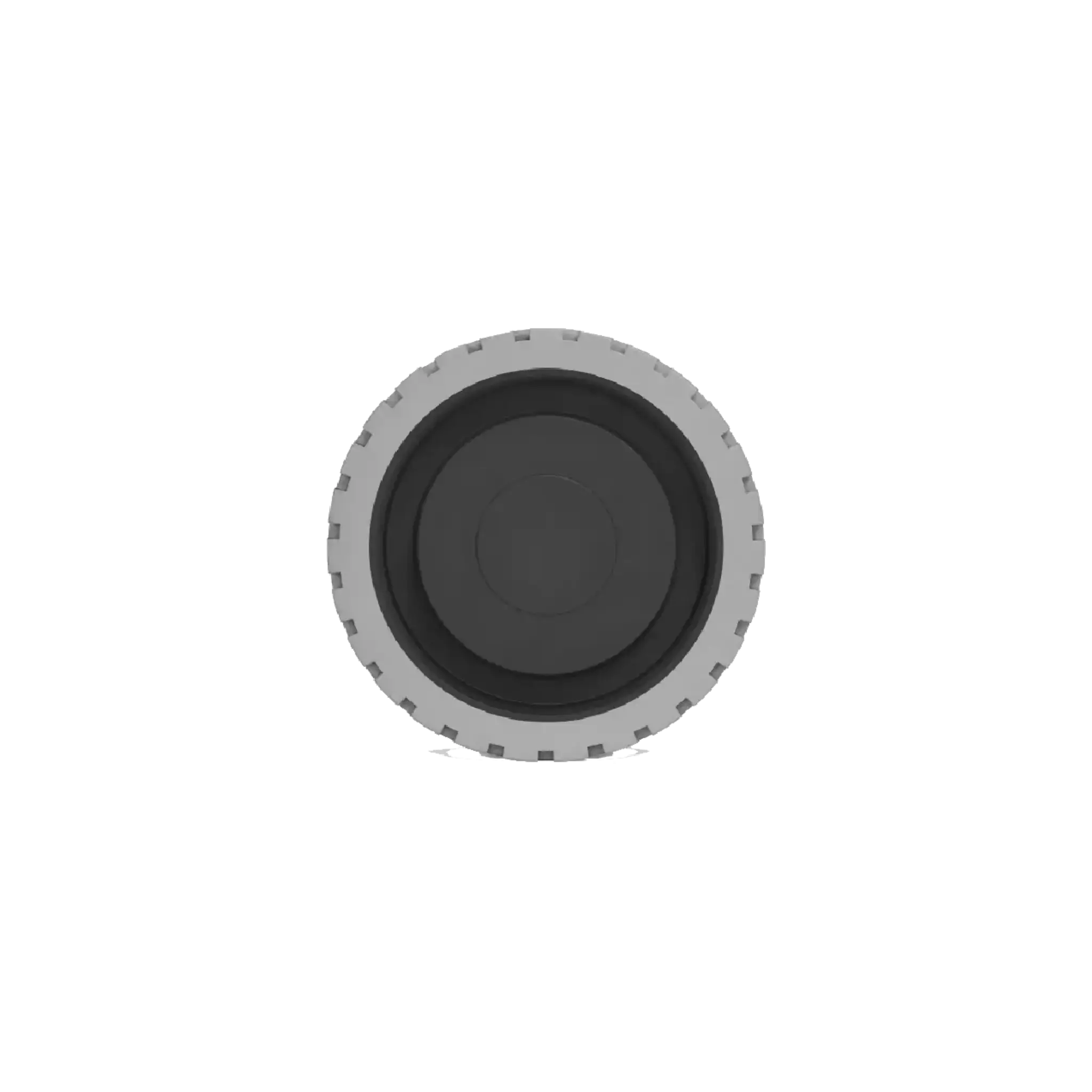

Rear tire

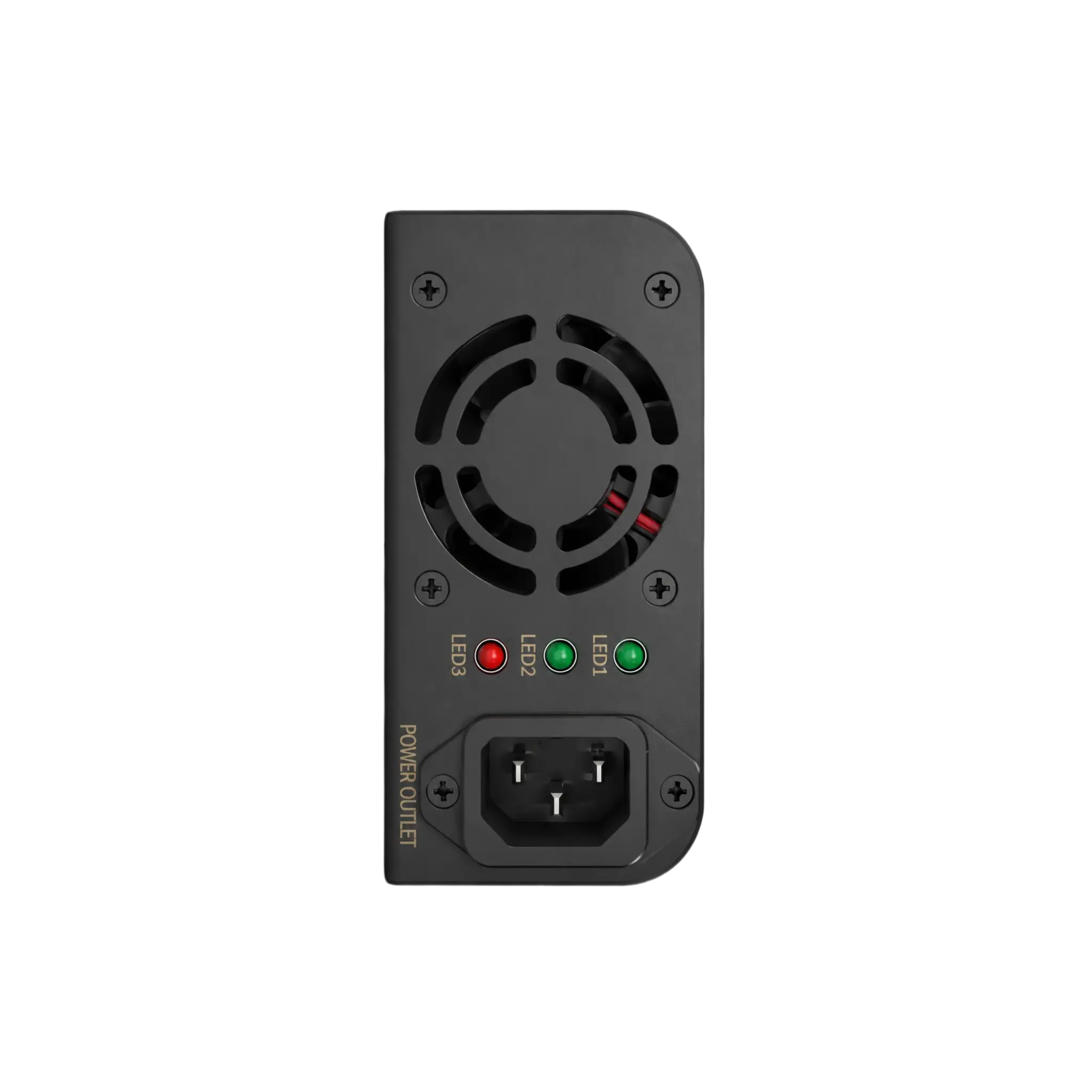

Charging Port
Integrated smart charger features a built-in cooling fan and LED status indicators for fast, safe, and battery recharging.
Upper Control Panel
Ergonomic, fully proportional joystick guarantees millimeter-level precision for both driving and lifting, maximizing operator safety.

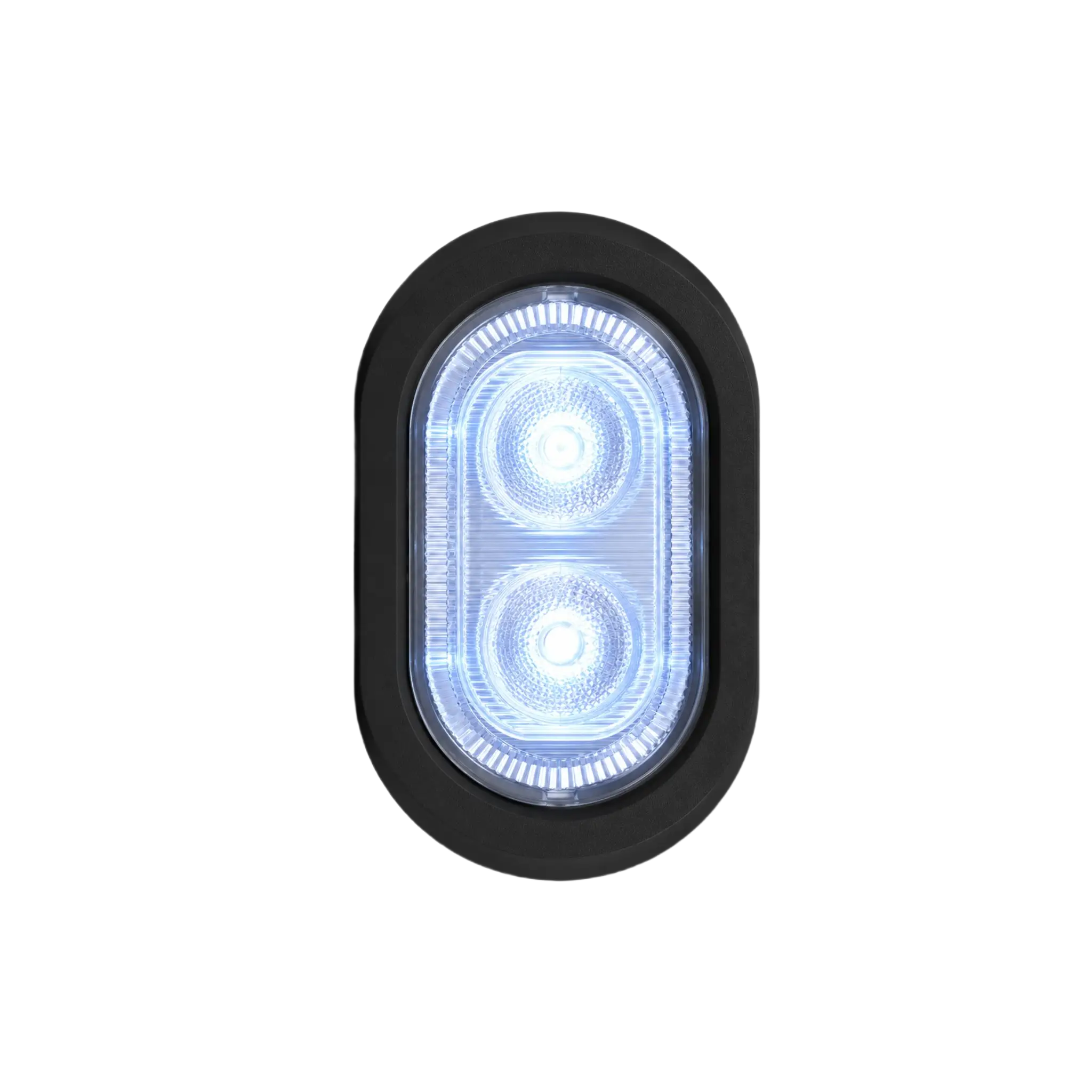

LED Light
LED warning lights ensure clear visibility in dim warehouse aisles, actively alerting nearby personnel to prevent collisions.
