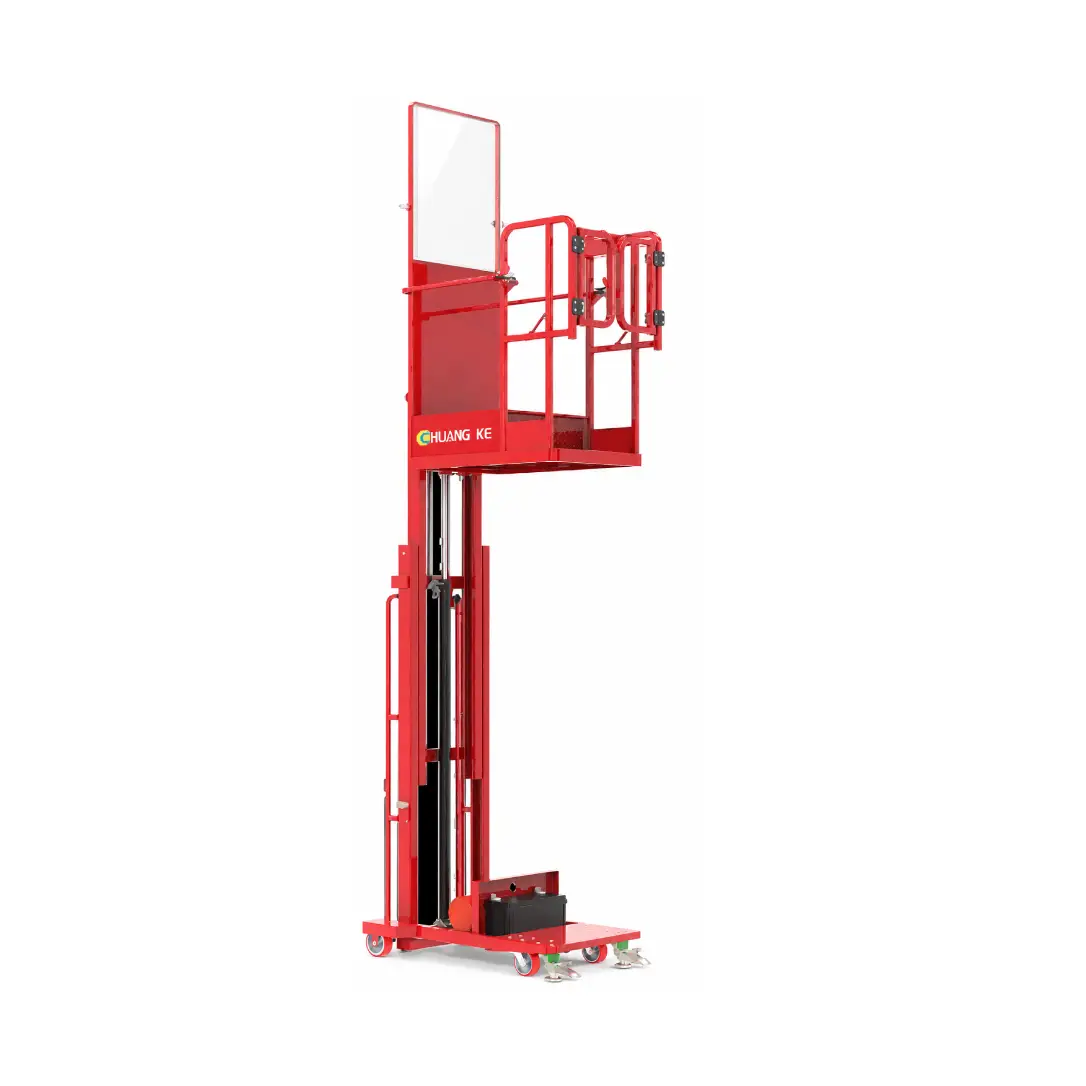

Semi-Electric Order Picker
Model:
OPY
Series
The Semi-Electric Order Picker, with a working height ranging from 4480 to 6500 mm, combines precise planetary gear drive control with comprehensive safety features — including mast guide protection, gate interlock, and strobe lighting — to deliver fast, safe, and efficient high-level order fulfillment.
STANDARDS & CERTIFICATIONS
CE
ANSI
ISO 9001 QMS
SPECIFICATIONS
Construction
Technical Data
WIZPLUS SEMI-ELECTRIC ORDER PICKER Series Comparison
WIZPLUS order picker series provides flexible lifting solutions for different working environments. Review key specifications including height range, platform capacity, dimensions, and performance features to select the ideal equipment for your elevated access needs.
Dimensions
OPY27
OPY33
OPY40
OPY45
Minimum ground clearance (mm)
30
30
30
30
Wheelbase (mm)
840
840
870
870
Steering wheel track (mm)
760
760
770
770
Universal wheel track (mm)
480
480
525
525
Outrigger span (mm)
/
/
1300
1300
Machine weight (kg)
300
310
405
430
Safe working load (kg)
200
200
200
200
Directional wheel (mm)
φ150*50
φ150*50
φ150*50
φ150*50
Feature 01

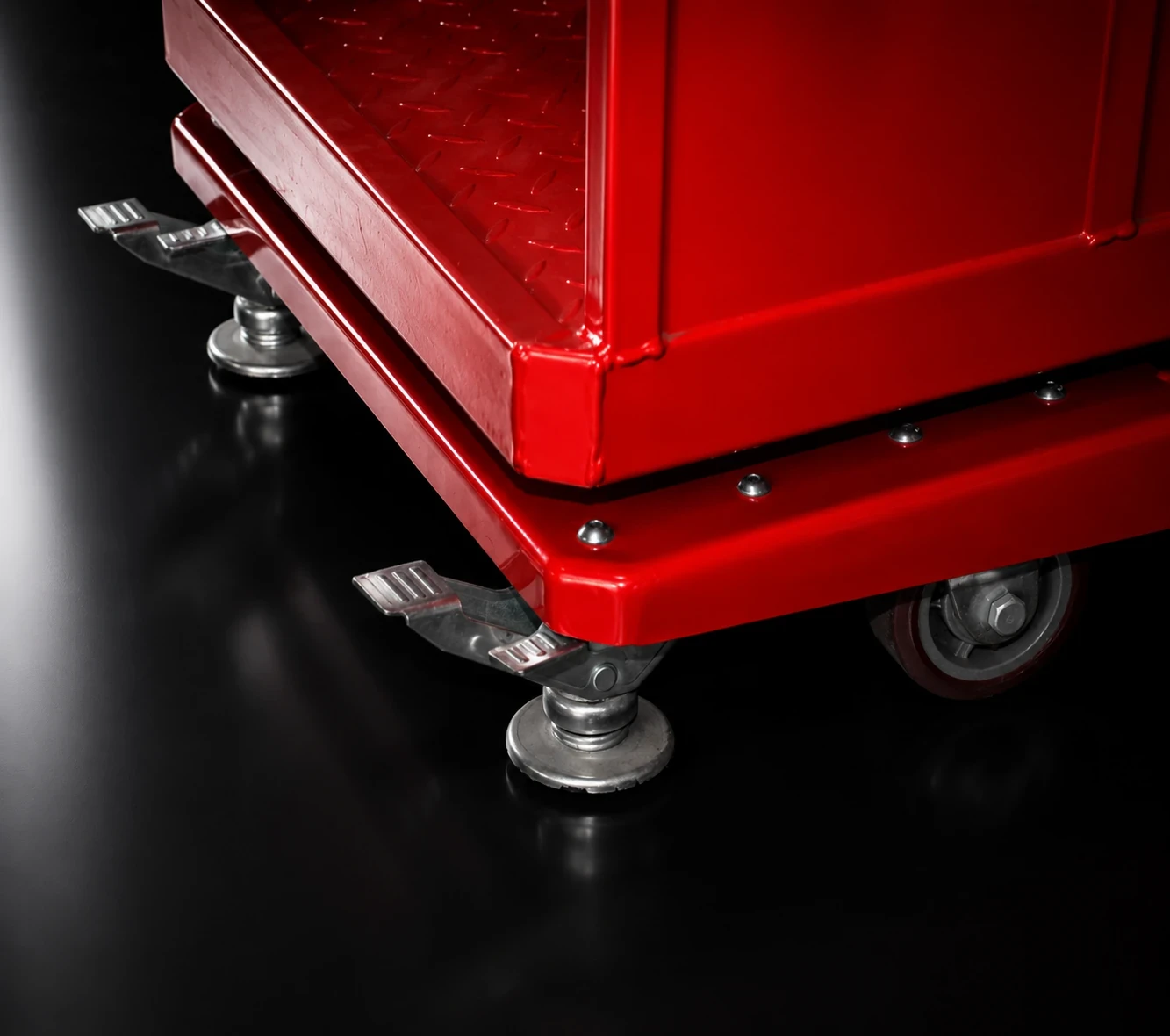

Heavy-Duty Caster Wheels
Durable caster wheels ensure smooth movement and reliable positioning.
Feature 02
Manual Stabilizer System
Adjustable stabilizer legs provide firm support on uneven surfaces.
Feature 03

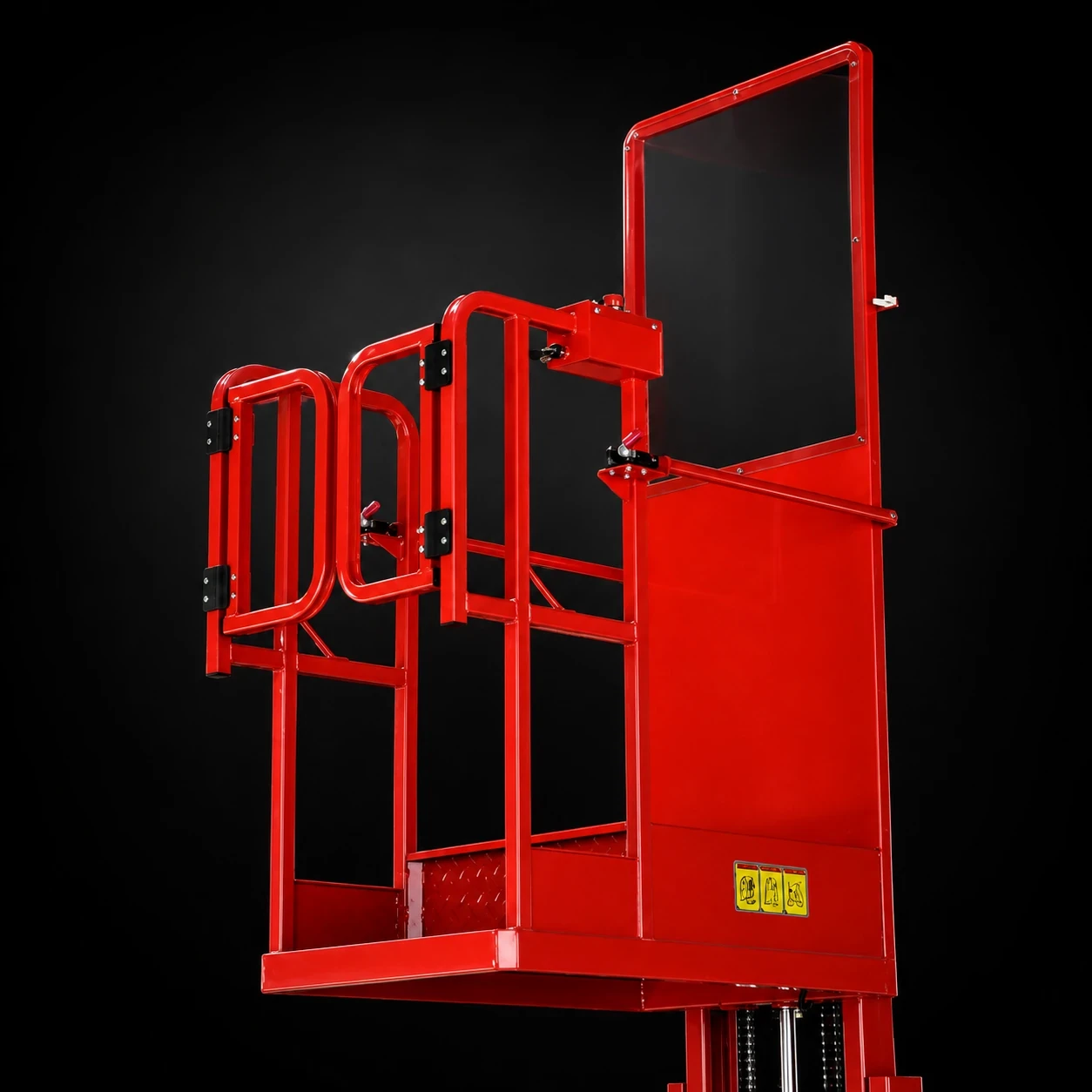

Safety Guardrail Platform
Full-height guardrails help ensure secure and confident operation.
Feature 04
Simple Control Panel
Clearly labeled controls enable quick and intuitive platform operation.
CAPABILITIES
Vertical Integration, Not Just Assembly
Many companies source components and assemble under their own branding. WIZPLUS handles R&D, design, and production in-house at our Zhejiang facility — design changes and quality decisions happen without routing through a third-party factory.
Export Growth That's Verifiable, Not Just Stated
In a relatively short window, WIZPLUS has supplied 150+ B2B customers across 20+ countries. We're not claiming to be the largest exporter — we're pointing to a specific, checkable number reflecting real repeat business.
Clear Terms Before You Commit
MOQ, lead time, payment terms, and Incoterms are confirmed upfront based on your specific order — not left vague until after a deposit is paid. For distributors managing their own downstream commitments, knowing the real numbers before committing matters more than a fast initial quote.
Built to Support Distributor Growth
Beyond individual orders, WIZPLUS works with distributors on branding customization, consistent supply for repeat stocking cycles, and configuration adjustments as their target market evolves — treating the relationship as ongoing rather than transactional.
Key Features
1
Hybrid Electric-Hydraulic Lift System
DC battery-driven motor with hydraulic pump station powers vertical lifting, while horizontal movement stays manual — a simplified design that reduces overall weight without sacrificing lifting performance.
2
200kg Safe Working Load
Rated for picking large items from shelves in warehouses, supermarkets, and similar retail environments — sized for real task loads, not just operator weight.
3
Fully Enclosed Guardrails on Operator & Goods Platforms
Both platforms are enclosed for safety during elevation, backed by a structural portal frame built from low-carbon alloy steel for long-term durability.
4
Redundant Safety Systems
Manual emergency lowering, an emergency stop switch, automatic platform door closing, and a heavy-duty floor brake work together to protect operators if power is lost or during standard use.
Manufacturing Capability
Laser Cutting for Structural Precision
Every chassis and frame component is laser-cut in-house, holding tighter tolerances than manual or outsourced cutting — the difference shows up in weld fit-up and long-term structural stability.
Automated Welding for Consistent Build Quality
Automated welding robots handle the repetitive structural joints, reducing the weld-to-weld variation you get from manual welding across a large production run.
40,000㎡ Facility, Fully Integrated
Design, fabrication, and assembly happen under one roof in Zhejiang — no outsourced sub-assemblies, no waiting on a third-party shop for a design revision.
Production Scaled for Standard and OEM Runs
The same facility handles both catalog orders and OEM/ODM configurations, so custom projects don't get routed to a separate, less-controlled production line.
SEMI-ELECTRIC ORDER PICKER
Your Trusted Order Picker Manufacturing Partner.
Applications

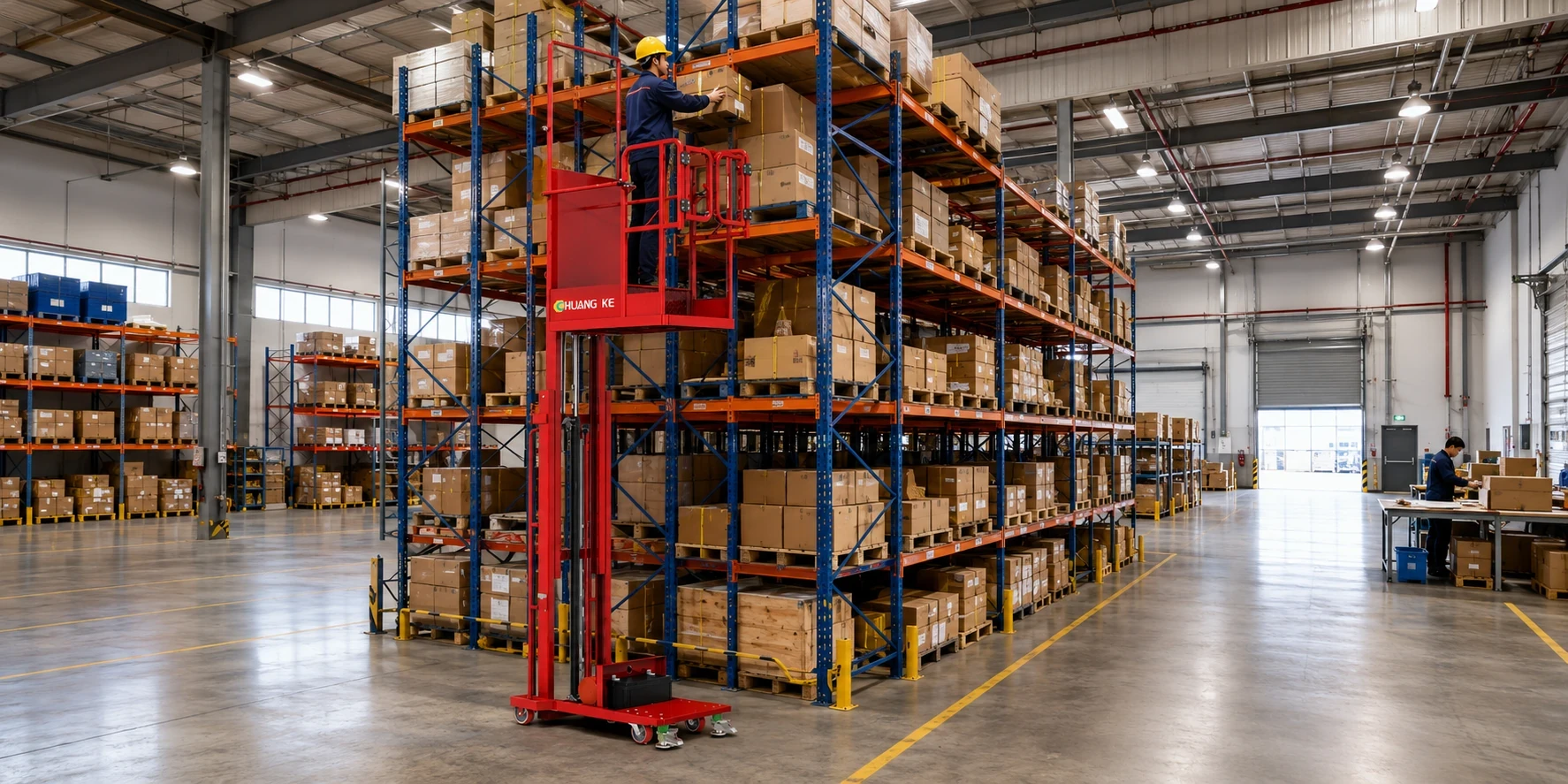

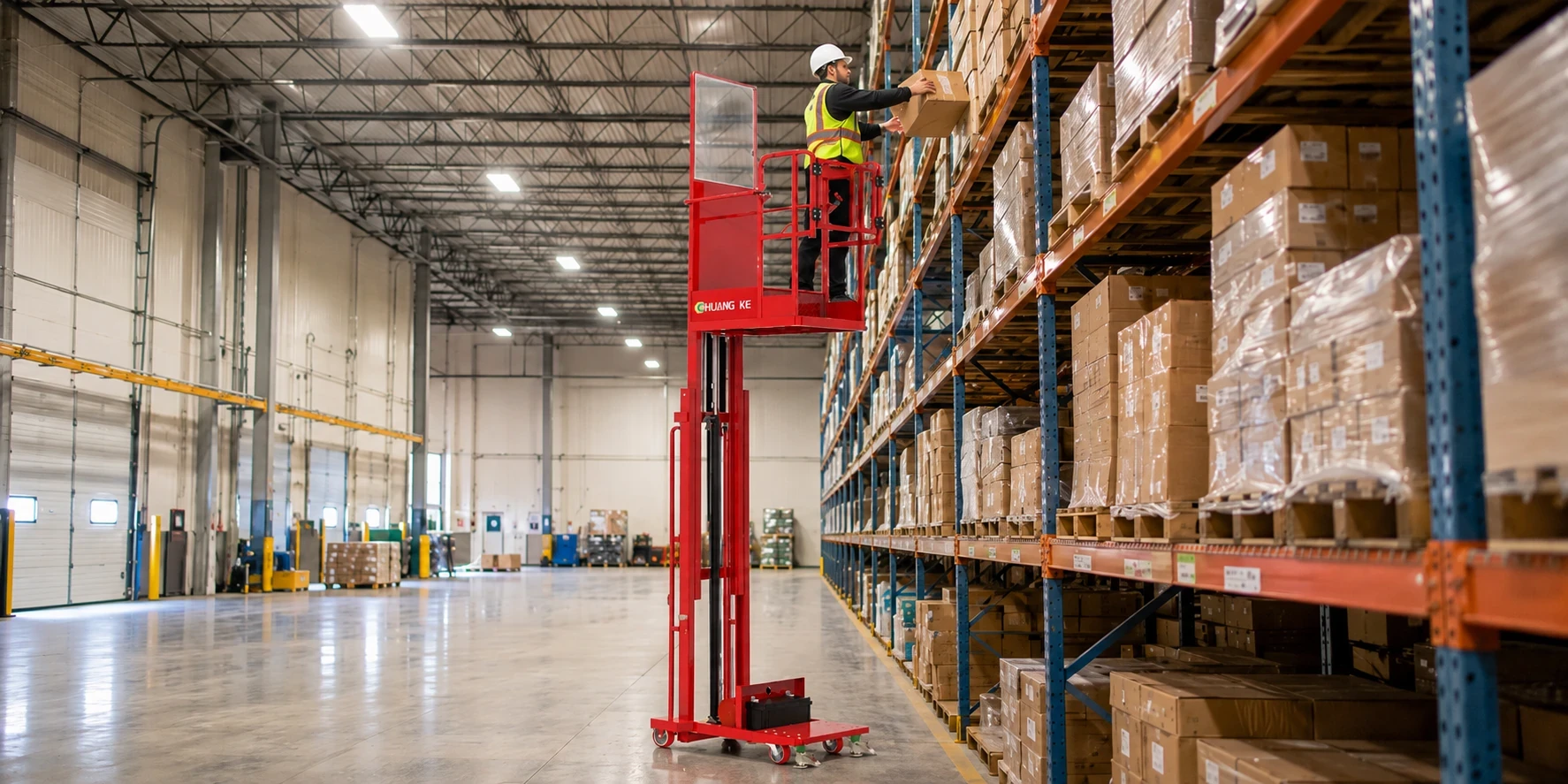

Elevated Access for the Picks That Can't Wait
Compact enough for narrow aisles, stable enough for repetitive lifting — built for the everyday picking and light maintenance tasks warehouses and retail spaces actually run into.
before order
Six Key Considerations Before Ordering a Lifting Platform
Understand the key considerations before ordering an order picker, including application requirements, working height, load capacity, customization options, safety compliance, and delivery planning.
1
Load Capacity & Platform Size
Quantify your actual load requirements first — maximum and minimum weight, plus the physical dimensions of what you're lifting. This determines the right platform size and working height, so the equipment fits your real workload instead of being chosen on price alone.
2
Working Height & Application Environment
Confirm your required working height and whether you're operating indoors on flat floors or outdoors on uneven terrain. This directly shapes the right drive type — electric for zero-emission indoor use, hydraulic for heavier outdoor demands.
3
Standard vs. Custom (OEM) Configuration
Standard configurations give buyers stronger negotiating leverage — typically better pricing and shorter lead times. Reserve OEM customization for genuine non-standard needs, and weigh the added cost against the specific value it delivers.
4
Certification & Regulatory Compliance
Confirm which certifications your target market requires — CE, ISO, or local safety standards. This isn't a nice-to-have; it's often the deciding factor for customs clearance and buyer acceptance.
5
Supplier Reliability & After-Sales Support
Verify the supplier's track record on bulk delivery consistency, spare parts availability, warranty terms, and technical response time. These factors shape long-term cost of ownership more than unit price alone.
6
Total Landed Cost — Not Just Unit Price
Look beyond the sticker price to MOQ, payment terms, Incoterms, and lead time. A lower unit price paired with unclear terms often ends up costing more than a slightly higher price backed by reliable conditions.
FAQ
Common Questions From Fire-Safety Engineers and Buyers
If you have any further questions,please visit the Even Support Center.
Definition & Basics
What is a semi-electric order picker?
What is another name for a semi-electric order picker?
Is a semi-electric order picker the same as a forklift?
Comparison Questions
What's the difference between a semi-electric and a fully electric order picker?
Is a semi-electric order picker good for narrow aisles?
Is a semi-electric order picker suitable for heavy-duty daily use?
Operation & Safety
Is operating a semi-electric order picker difficult?
What safety features does a semi-electric order picker typically have?
How much weight can a semi-electric order picker safely carry?
WIZPLUS Product Questions
Does WIZPLUS manufacture semi-electric order pickers in-house?
Can WIZPLUS customize a semi-electric order picker for OEM orders?
What's the maintenance requirement for a WIZPLUS semi-electric order picker?
