Order Picker Specifications Explained: Height, Capacity, Battery & Dimensions
Published
Category
Guide
Learn how to evaluate order picker specifications including lifting height, load capacity, battery type, dimensions, and key features before choosing warehouse picking equipment.
Introduction: Understanding Order Picker Specifications Before Buying
Selecting the right warehouse equipment requires more than comparing prices. For companies investing in an order picker, understanding the technical details behind the machine is essential for improving productivity, safety, and long-term operating efficiency.
Order picker specifications describe the key performance factors that determine whether a machine is suitable for a specific warehouse environment, including lifting height, platform capacity, battery performance, machine dimensions, and operational features.
Unlike conventional forklifts that mainly transport pallets, an electric order picker is designed for high-frequency picking, replenishment tasks, and elevated access applications where operators need to collect goods directly from storage locations.
Before choosing warehouse picking equipment, buyers should evaluate questions such as:
How high does the operator need to reach?
What load capacity is required?
Will the machine fit within existing aisles?
What battery system can support daily operation?
Which safety features are necessary?
This guide explains the most important specifications of modern order pickers and provides a practical framework for selecting the right equipment for warehouses, distribution centers, and commercial facilities.
Understanding Order Picker Specifications: The Key Factors That Define Performance
What Are Order Picker Specifications?
Order picker specifications are the technical measurements and performance indicators used to evaluate warehouse picking machines.
These specifications help buyers compare different models and determine whether equipment matches their operational requirements.
The most important specification categories include:
Lifting height
Platform height
Load capacity
Battery voltage and capacity
Overall dimensions
Working speed
Safety systems
A professional evaluation should not focus on a single number. A machine with a higher lifting height may not always be the best choice if it cannot fit the warehouse layout or meet daily workload requirements.
Why Technical Specifications Matter for Warehouse Operations
Warehouse environments are becoming increasingly focused on:
Higher storage density
Faster order fulfillment
Reduced labor requirements
Improved operator safety
The correct self-propelled order picker can help businesses maximize vertical storage space while reducing unnecessary movement during picking operations.
For example, a compact electric order picker may perform better than larger equipment in narrow warehouse aisles because operators can access products more efficiently.
Order Picker Height Explained: Working Height vs Platform Height
What Is the Maximum Working Height of an Order Picker?
The maximum working height is one of the most important factors when selecting an order picker.
It represents the highest position an operator can safely reach when standing on the raised platform and accessing products stored on racks.
The WIZPLUS OPC Series self-propelled order picker provides:
Maximum working height: 5000–6000 mm
Maximum platform height: 3000–4000 mm
This working range makes the equipment suitable for warehouses requiring vertical picking operations while maintaining a compact footprint.
Working Height and Platform Height: What Is the Difference?
These two measurements are often confused during equipment selection.
Specification | Meaning | Importance |
|---|---|---|
Platform Height | Maximum height the operator platform reaches | Determines operator elevation |
Working Height | Total reachable height during picking | Determines rack accessibility |
A warehouse manager should always compare the machine's working height with the highest storage level instead of looking only at platform height.
For example, if warehouse racks are 5 meters high, choosing a machine with insufficient working height will reduce operational efficiency and may require additional equipment.
How to Choose the Right Order Picker Height
When selecting lifting height, consider:
Measure the highest shelf level where products need to be picked.
Add the operator's required reaching height.
Consider future warehouse expansion.
Select equipment with enough capacity margin.
A common mistake is choosing equipment based only on current requirements without considering future storage changes.
Order Picker Capacity Explained: Load Limits and Practical Applications
Understanding Order Picker Load Capacity
Load capacity determines how much weight an operator can safely carry during picking operations.
Unlike pallet forklifts that handle heavy pallet loads, order pickers are optimized for individual item picking, cartons, tools, and warehouse materials.
The WIZPLUS OPC Series uses multiple load areas to improve flexibility:
Loading Area | Capacity |
|---|---|
Standing Platform Load | 136 kg |
Grid Storage Table Load | 90 kg |
Carrying Deck Load | 110 kg |
This design allows operators to carry products and supporting materials during warehouse replenishment and picking tasks.
How to Calculate the Required Order Picker Capacity
Before purchasing equipment, companies should evaluate:
Operator weight requirements.
Average product weight.
Tools or accessories carried during operation.
Number of items collected per picking cycle.
The correct capacity selection improves:
Operator safety
Equipment durability
Warehouse productivity
Common Order Picker Capacity Mistakes
Some buyers focus only on maximum weight and ignore how the machine will actually be used.
Common mistakes include:
Selecting insufficient capacity for daily operations.
Ignoring additional tools or equipment weight.
Using unsuitable machines for heavy pallet movement.
Choosing equipment without considering workload frequency.
An order picker should be selected based on the complete workflow, not just the product specification sheet.

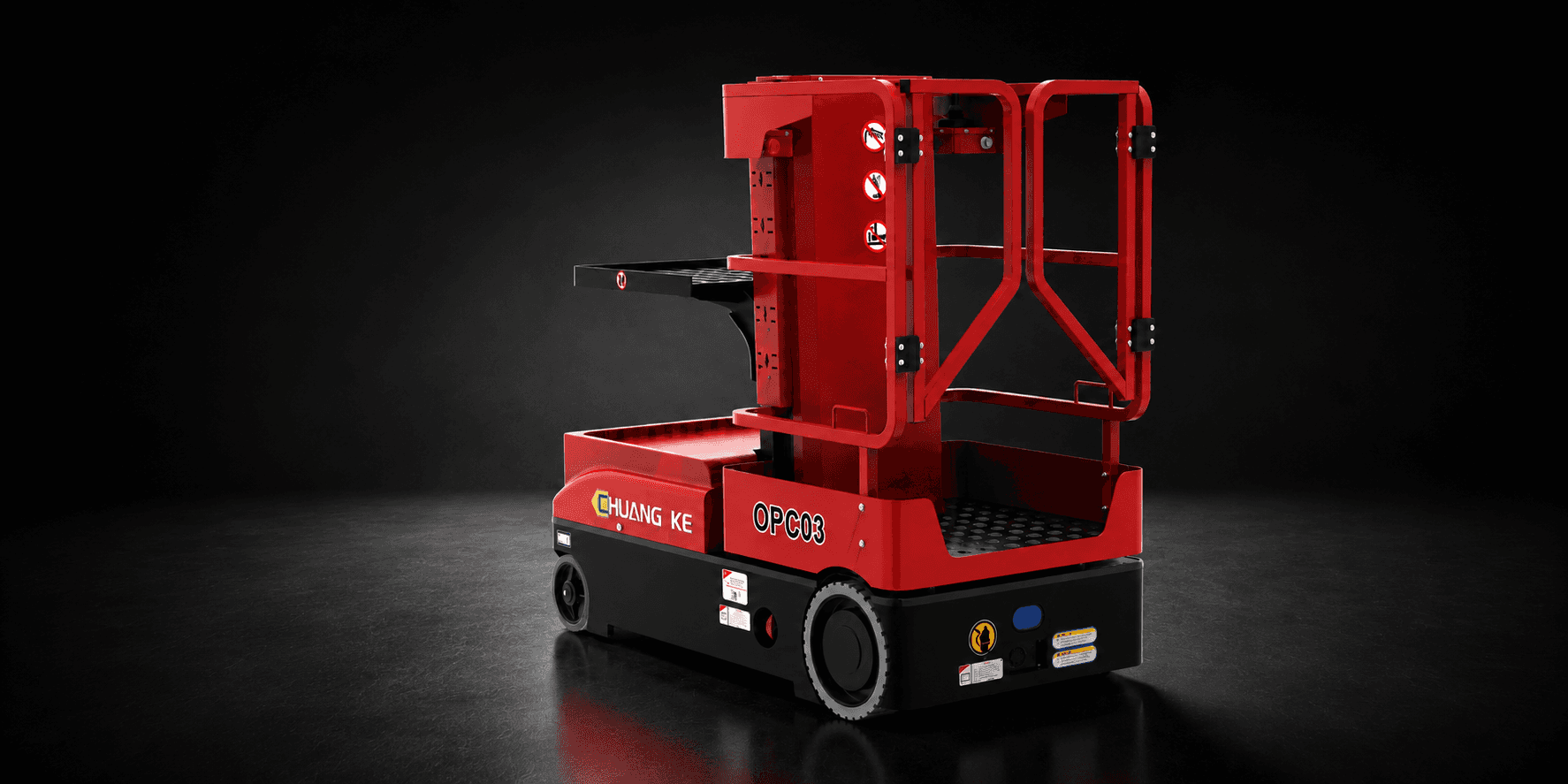

Electric Order Picker Battery Specifications: Power System Explained
Battery Voltage and Capacity
The battery system directly affects operating time, charging frequency, and warehouse efficiency.
The WIZPLUS OPC Series uses an electric power system with:
Voltage: 24V DC
Lift Motor: 24V 0.8KW
Drive Wheel Motor: 0.5KW
Battery: 2 × 12V 100Ah
Charger: 24V 15A
This configuration supports regular indoor warehouse operations where reliable electric performance is required.
Why Battery Selection Matters for Warehouse Equipment
Battery performance affects:
Daily operating hours
Charging schedules
Maintenance requirements
Total ownership cost
For businesses comparing electric order picker models, battery specifications should be considered together with:
Working intensity
Number of operating cycles
Available charging time
Warehouse environment
Lead-Acid vs Lithium Battery Considerations
When evaluating electric warehouse equipment, buyers commonly compare battery technologies.
Battery Type | Advantages | Considerations |
|---|---|---|
Lead-Acid Battery | Proven technology, lower initial cost | Requires regular maintenance |
Lithium Battery | Faster charging, longer cycle life | Higher initial investment |
The best option depends on operating requirements, budget, and expected usage frequency..
Why Order Picker Dimensions Matter
Warehouse layout has a direct impact on equipment performance.
Even a powerful order picker may not deliver good results if it cannot move efficiently through aisles, storage areas, or working zones.
When evaluating order picker dimensions, buyers should consider:
Overall machine size
Turning space
Platform dimensions
Storage area dimensions
Warehouse aisle width
Compact dimensions are especially important for:
E-commerce fulfillment centers
Retail warehouses
Spare parts storage
Narrow aisle applications
WIZPLUS OPC Series Dimensions and Design Advantages
The WIZPLUS OPC Series is designed with a compact structure to support flexible warehouse operations.
Key dimensions include:
Specification | Measurement |
|---|---|
Overall Length | 1475 mm |
Overall Width | 1475 mm |
Overall Height | 1475 mm |
Standing Platform Length | 755 mm |
Standing Platform Width | 690 mm |
Grid Storage Length | 745 mm |
Grid Storage Width | 560 mm |
Carrying Deck Length | 670 mm |
These dimensions allow operators to work efficiently in environments where space utilization is critical.
How to Match Order Picker Size With Warehouse Layout
Before purchasing warehouse picking equipment, companies should evaluate:
1. Aisle Width
Measure the available aisle space and ensure the machine can move safely.
2. Storage Configuration
Consider:
Rack arrangement
Shelf height
Picking frequency
Product locations
3. Operating Area
Check whether there is enough space for:
Turning
Loading and unloading
Operator movement
Choosing the correct dimensions prevents operational limitations after installation.
Order Picker Features That Improve Warehouse Productivity
Key Components of a Modern Electric Order Picker
A professional order picker combines mechanical systems, electrical controls, and safety features to improve daily operations.
Important components include:
Electric drive system
Hydraulic lifting system
Operator platform
Storage tray
Control panel
Safety warning systems
The WIZPLUS OPC Series includes several operator-focused features designed for efficient picking activities.
Joystick Control for Precise Operation
The ergonomic joystick allows operators to control movement smoothly from the elevated platform.
This improves:
Driving accuracy
Operator comfort
Maneuverability in warehouse environments
Load Tray for Picking Efficiency
During order fulfillment operations, operators often need to carry tools, packages, or small materials.
The integrated load tray provides additional storage space for:
Tools
Packages
Order-picking materials
This reduces unnecessary movement and helps improve picking efficiency.
Safety Features for Warehouse Operations
Safety is a critical factor when using elevated picking equipment.
The OPC Series includes:
Platform Control Panel
The integrated control system provides:
Convenient operation
Equipment status monitoring
Emergency stopping capability
Blue Safety Light
The blue warning light improves equipment visibility and alerts nearby workers during operation.
How to Choose the Right Order Picker Specifications for Your Warehouse
Selecting the correct machine requires evaluating multiple factors rather than focusing on a single specification.
Step-by-Step Order Picker Selection Process
Follow these steps before making a purchasing decision:
Identify required working height
Measure the highest storage location that operators need to access.
Calculate required load capacity
Include operator weight, products, tools, and additional materials.
Analyze warehouse space
Check aisle width, turning areas, and storage layout.
Evaluate operating frequency
Determine how many picking cycles the equipment must complete daily.
Compare battery requirements
Select a power system suitable for expected working hours.
Review safety and maintenance features
Consider operator protection and long-term reliability.
Common Mistakes When Buying an Order Picker
Many companies make purchasing decisions based only on price or maximum lifting height.
However, the wrong choice can lead to:
Reduced productivity
Increased maintenance costs
Safety concerns
Poor warehouse workflow
Important Selection Considerations
Before buying, check:
Required lifting height
Maximum working load
Battery performance
Machine dimensions
Warehouse application
Operator training requirements
Spare parts availability
A complete evaluation ensures the equipment matches real working conditions.

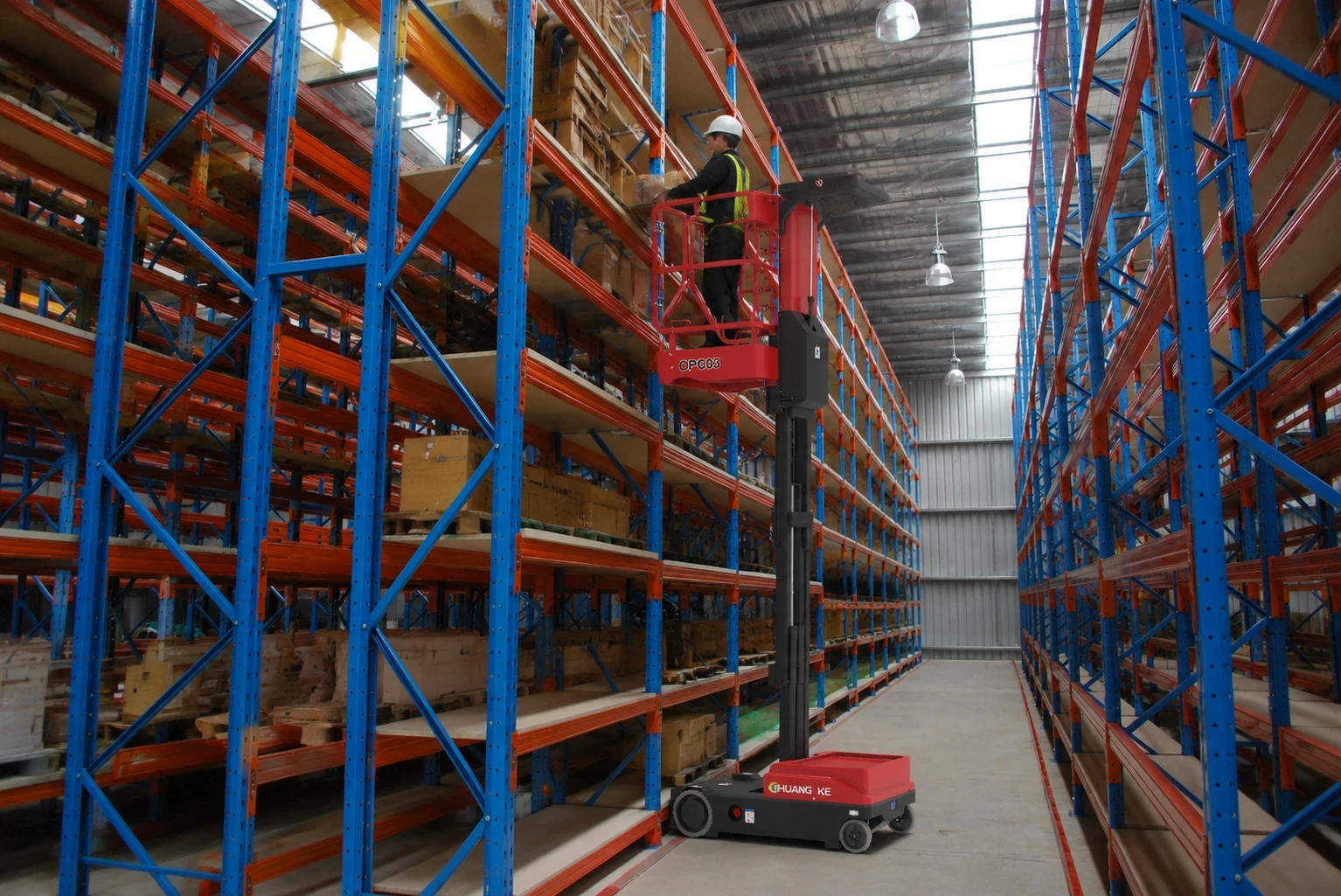

Order Picker Applications: Where This Equipment Is Used
E-Commerce Warehouses
Online retail operations often require fast product picking across thousands of SKUs.
Order pickers help operators:
Access multiple shelf levels
Reduce walking distance
Improve order fulfillment speed
Distribution Centers
Distribution facilities use order pickers for:
Inventory replenishment
Product collection
Storage organization
Their flexibility makes them suitable for high-frequency picking environments.
Commercial Maintenance Applications
Beyond warehouse picking, elevated platforms can support:
Lighting maintenance
Sign installation
Facility inspection work
The WIZPLUS OPC Series is designed for both high-frequency picking and elevated maintenance applications.
Order Picker Specifications Comparison: What Buyers Should Evaluate
Specification Category | Why It Matters | Buyer Consideration |
|---|---|---|
Working Height | Determines rack accessibility | Match with storage height |
Load Capacity | Ensures safe operation | Consider total working load |
Battery System | Affects operating time | Match with daily workload |
Dimensions | Determines maneuverability | Check warehouse space |
Safety Features | Protects operators | Review control and warning systems |
Frequently Asked Questions About Order Picker Specifications
What are the most important order picker specifications?
The most important specifications include working height, load capacity, battery system, dimensions, and safety features. These determine whether the equipment matches the warehouse environment and operational requirements.
How high can an order picker reach?
The lifting capability depends on the model. The WIZPLUS OPC Series provides a maximum working height of 5000–6000 mm and a maximum platform height of 3000–4000 mm.
What load capacity does an electric order picker need?
The required capacity depends on the operator, products, and additional materials being carried. Buyers should calculate the complete working load instead of considering product weight alone.
Are electric order pickers suitable for indoor warehouses?
Yes. Electric order pickers are commonly used in indoor warehouse environments because they provide quiet operation, zero direct emissions, and efficient maneuverability.
What is the difference between an order picker and a forklift?
A forklift is mainly designed for pallet transportation and heavy loads, while an order picker is designed for direct product picking from storage racks where operators need elevated access.
How do I choose the right order picker for my warehouse?
The correct selection depends on:
Required working height
Load requirements
Warehouse dimensions
Operating frequency
Battery needs
Safety requirements
Conclusion: Choosing the Right Order Picker Specifications for Better Warehouse Performance
Understanding order picker specifications is essential for selecting equipment that improves warehouse productivity, safety, and operational efficiency.
The right machine should provide the correct balance between:
Lifting height
Load capacity
Battery performance
Compact dimensions
Operator safety
For modern warehouses, an electric self-propelled order picker offers a practical solution for high-frequency picking operations, replenishment tasks, and elevated access applications.
By carefully evaluating technical specifications before purchase, businesses can avoid costly mistakes and choose equipment that supports long-term warehouse growth.
Optimize Your Warehouse Picking Operations With WIZPLUS
Looking for a reliable electric order picker solution for your warehouse?
WIZPLUS provides professional warehouse equipment designed for efficient picking operations, compact working environments, and improved operator productivity.
Contact our team today to discuss your required working height, load capacity, and warehouse application.
Other Blogs
